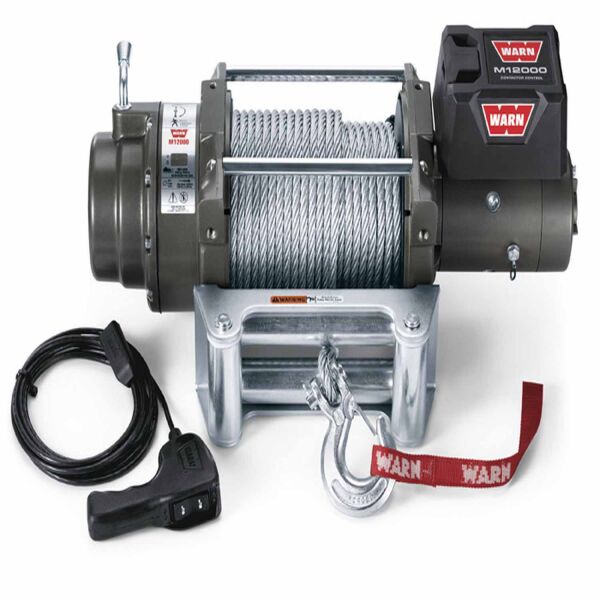

WARN WINCH, M12000,12V,125',ROLLER Winch Warn #WAR17801

Built for the biggest, heaviest and longest pulls, the WARN Heavyweight Series winches are capable of pulling over 16,000 lbs. and feature heavy-duty carrier plates that are engineered to handle the massive gear train stress generated when recovering the largest of loads.

For heavy duty Winching needs, Warn Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is what Warn delivers

  • 12 Volt Electric
  • 12000 Pound Line Pull Capacity
  • 125 Foot Wire Rope
  • Roller Fairlead
  • Wired Remote
  • Planetary Gear Drive
  • Requires Winch Carrier or Winch Mount
  • Large frame design to handle heavier winch loads
  • High speed motor for fast line speed and powerful pulls
  • Best-in-class cone brake holds the winch?s full rated load
  • Chip-resistant powder-coated finish resists corrosion
  • Remote-mount control box allows for various mounting options
  • Industry-leading warranty: Limited lifetime (mechanical components)
  • seven year (electrical components)
  • Limited lifetime warranty for mechanical parts and 7 years on the electrical?

  • Type Electric
  • Voltage 12 Volt
  • Recommended Use Vehicle Recovery
  • Mount Type Vehicle Mounted
  • Brake Type Mechanical Cone
  • Conforms To J706 Standards No
  • Drive Gear Type Planetary
  • Electrical Control Type Contactors
  • Fairlead Type Roller
  • Free Spooling Yes
  • Gear Reduction Ratio 261:1
  • Line Diameter (IN) 3/8 Inch
  • Line Length (FT) 125 Feet
  • Line Material Steel
  • Max Amp Draw/ Line Pull 440 Amp Draw/ 12000 Pound
  • Max Line Pull/ Line Speed 12000 Pound/ 3.86 Feet Per Minute
  • Motor Horsepower 4.6 Horsepower
  • Motor Type Series Wound
  • Operation Type Automatic
  • Thermal Shutoff No
×
