White Hammerhead-Style 100-Gallon L-Shape Steel Transfer Tank Liquid Transfer Tank UWS #UWSST-100HH-W

The hammerhead-style transfer tank is engineered to be the universal transfer tank for all full-size trucks. It features a unique narrowed base that fits between the wheel wells in the truck bed, even on short-bed pickup trucks (verify fitment using the product dimensions). This innovative L-shaped transfer tank is ideal for safely and effectively transporting diesel and other non-flammable liquids. It is constructed with 14-gauge, pressure-tested steel and has a durable white powder coat finish. The hammerhead-style transfer tank is also equipped with a lockable, vented cap that allows for easy filling and provides extra security when your truck is left unattended. It comes with internal baffles to promote a smooth flow of liquids and to help prevent sloshing. For easier movement and installation, the tank comes with integrated mounting tabs and lifting hooks. Finally, to easily drain the tank whenever necessary, a drain plug is integrated into the base. NOTE: Will not fit short-bed trucks with a gooseneck hitch installed (75-gallon transfer tank recommended).

  • Heavy-duty 14-gauge steel tank is 100% pressure-tested for safety
  • Transfers diesel or other non-flammable liquids to on-site vehicles or equipment
  • L-shaped tank allows space for a truck tool box

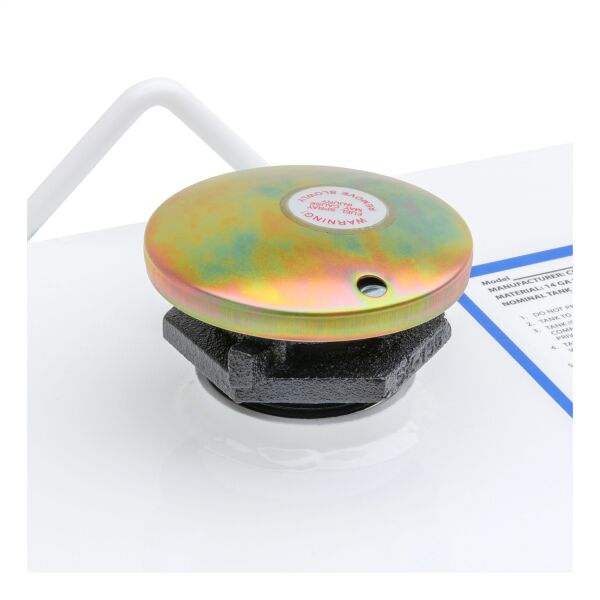

  • Lockable, commercial-grade vented cap with reinforced collar for added security
  • Built-in drain plug for easy and complete emptying as needed

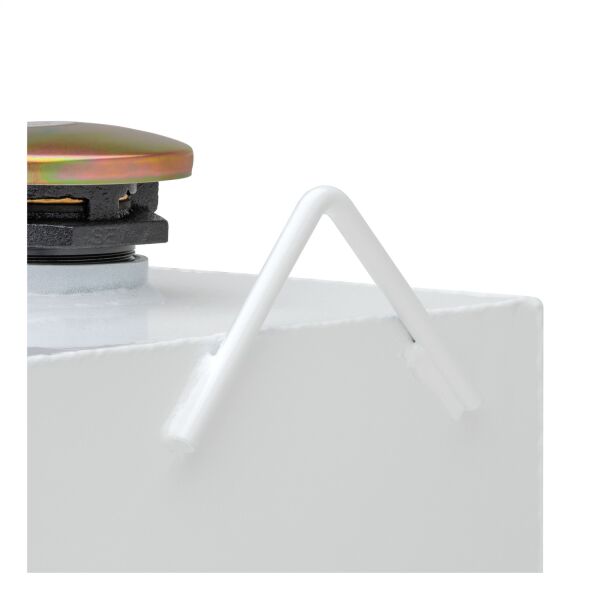

  • 1/8" steel tabs for a solid install and built-in lift hooks for easy relocation

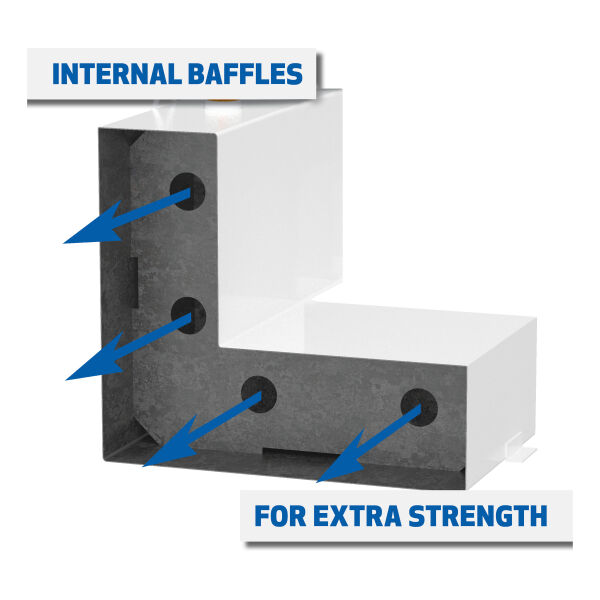

  • Internal baffles for extra strength and an even flow of liquid
  • Assembled in USA
  • Limited lifetime warranty (one-year finish, one-year parts)

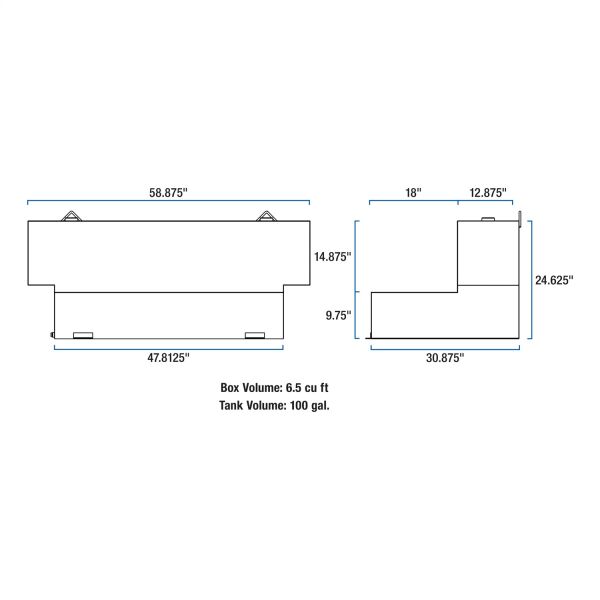

  • Lower Tub Width 18
  • Overall Width 31
  • Pallet Qty - XA 3.000
  • Tank Style L-Shaped Hammerhead
  • Tank Capacity 100-Gallon
  • Tub Height 9.75
  • Tub Length 48
  • Upper Height 15
  • Tub Width 13
  • Overall Height 24.75
  • Finish WHITE POWDER COAT
  • Overall Length 59
  • Side Application Type Description - XA Blank
  • Finish - XA WHITE POWDER COAT
  • Material - XA Carbon Steel
  • Sales Family Code - XA TANK
  • Mount Type Description - XA Blank
  • Retail Height - XA 25.250
  • Rate Class - XA 125.0
  • Item Class - XA TNKJ
  • Item Class - XA TNKJ
  • Shipping Weight - XA 185.000
  • Parcel Allowed - XA No
  • Item Width - XA 0.000
  • Item Width - XA 0.000
  • Retail Width - XA 32.000
  • Tariff 301 - XA No
  • Item Height - XA 0.000
  • Item Height - XA 0.000
  • Item Length - XA 0.000
  • Item Length - XA 0.000
  • Retail Length - XA 59.500
  • Box Width in Inches - XA 0
  • Box Length in Inches - XA 0
  • Product Weight - XA 177.000
  • Box Height in Inches - XA 0
  • Sales Family Description - XA TRANSFER TANKS
  • Sales Group Description - XA LIQUID TRANSFER TANK
  • Master Case ITF14 0
  • Master Case ITF14 - XA 0
  • Master Case Length Inches - XA 0.000
  • Master Case Qty - XA 0
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 0.000
  • Master Case Width Inches - XA 0.000
  • Pallet Case Per - XA 0
  • Pallet Case Per Layer - XA 0
  • Pallet Cases Per - XA 0
  • Pallet Cases Per Layer - XA 0
  • Pallet Layer of Cases - XA 0
  • Pallet Total Height Inches - XA 0.000
  • Pallet Total Weight Per - XA 0.000
  • Prop 65 Label Text - XA WARNING: This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm.  For more information go to www.P65Warnings.ca.gov.
  • Prop 65 Material - XA Lead
  • Prop 65 Reason - XA Keys
  • Prop 65 Warning Label Type - XA Cancer and Birth Defect Causing
  • Prop 65 Warning Y/N - XA YES
  • Truckload Cases Qty - XA 0
  • Truckload Pallets Qty - XA 0
  • Truckload Units Qty - XA 0
  • Truckload Volume Cubic Feet - XA 0.00000
  • Truckload Weight - XA 0
  • Container Cases Qty - XA 0
  • Container Pallet Qty - XA 0
  • Container Unit Qty - XA 0
  • Container Volume Cubic Feet - XA 0.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 0
  • Container Weight Lbs - XA 0
  • Master Case Height Inches - XA 0.000
  • Master Case Inner Pack Qty - XA 0
×
