RockyMounts DropTop Bike Rack Rhino-Rack USA #RNR10880

Since 1992 Rhino-Rack has proven to be Australia\'s most diverse roof rack company, with a range of rack systems to suit everyone from the weekend warrior, overlander, off-roader, and ladder-carrying tradesman alike. Our objective is to achieve total customer satisfaction by providing innovative and class leading load carrying equipment solutions for the automotive industry. Rhino-Rack roof bars and legs are made and tested to Australian standards AS1235 2000. The company works in conjunction with vehicle manufacturers to develop rack systems to suit their various requirements. The total commitment to stay ahead of the ever-changing vehicle trends has enabled Rhino-Rack to supply products for all industry segments. Quality design, industry leading innovations, sensible pricing and international distribution enables Rhino-Rack progress to new horizons for decades to come.

  • Introducing the DropTop

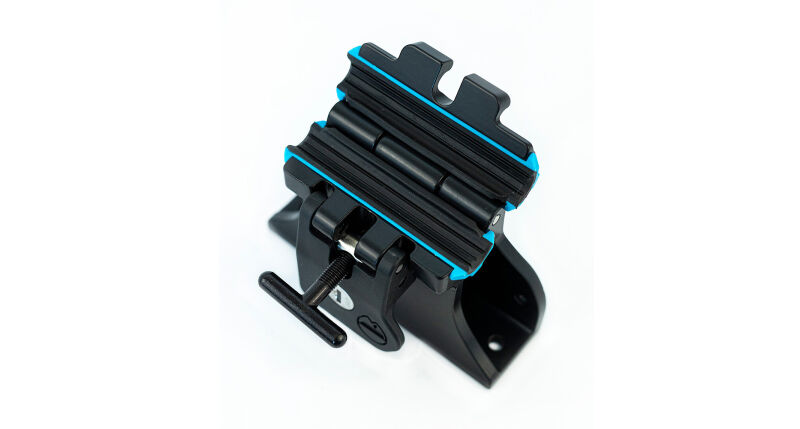

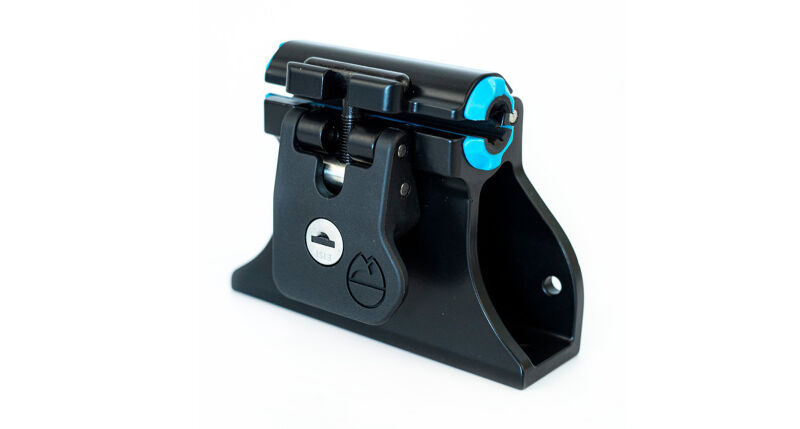

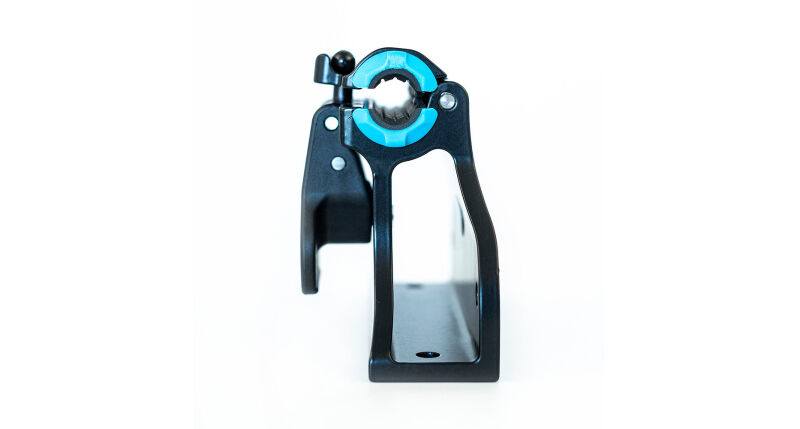

  • our next locking bike fork mount that grows upon years of feedback and use. The DropTop utilizes a TPU overmolded shim to allow for both 12mm and 15mm axles to fit without the need for switching shims out. It is based upon the same clamshell design as the DriveShaft series, which allows for easy loading and adapts to minor differences in axle diameter or contouring. The DropTop also includes mounting holes for both horizontal and vertical mounting orientations, it replaces both the DriveShaft HM and DriveShaft Track Mounts.
  • The only locking thru-axle track mount for truck and van tracks
  • Compatible with 12mm, 15mm, & 20mm thru axles up to 110mm wide (for 20mm, shims must be removed)
  • Vertical and horizontal mounting positions
  • TPU overmolded shim eliminates the need to switch out shims for 12mm or 15mm axles
  • Anti-Theft: TPU surface provides sufficient friction to stop the axle from being removed when DropTop is firmly clamped and locked
  • Can fit QR bikes with our 9mm QR with Dummy Axle - sold separately

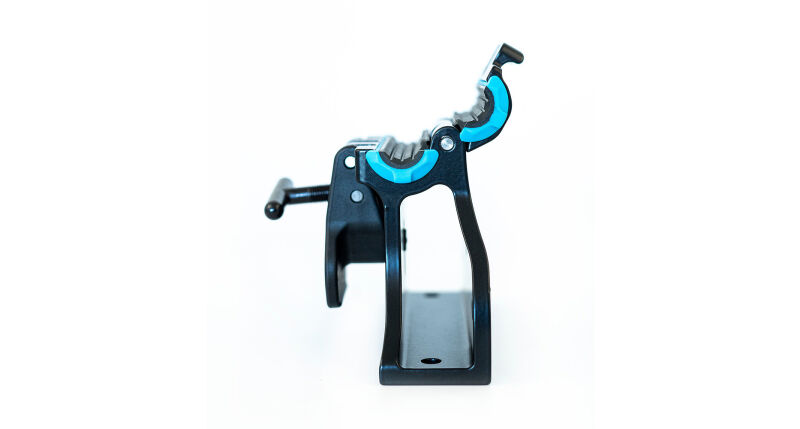

  • Wide mouth opening to easily load your bike and a locking T-Bolt that adjusts for a tighter hold so the thru-axle cannot be removed when locked
  • Carries 1 bike, up to 45 lbs
  • Lock core, keys, and Track Hardware Included

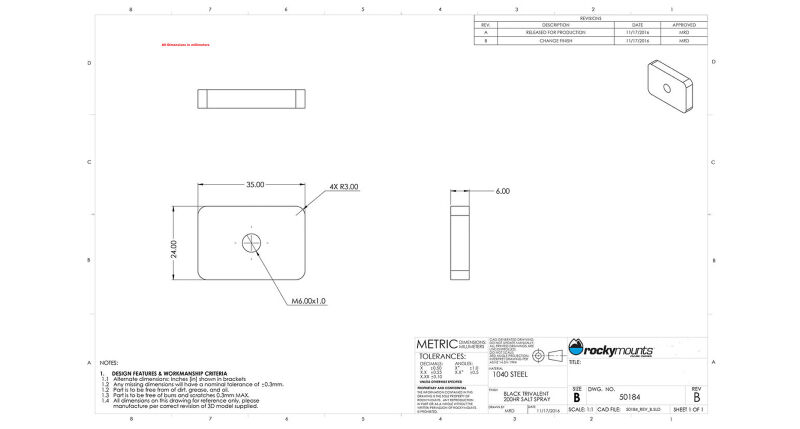

  • Track Plates measure 24mm x 35mm x 6mm thick with an M6 x 1mm tapped hole and can be installed in either orientation. See drawing in images
  • Fits all Toyota Tacoma and Tundra Bed Rails 2010-2024
