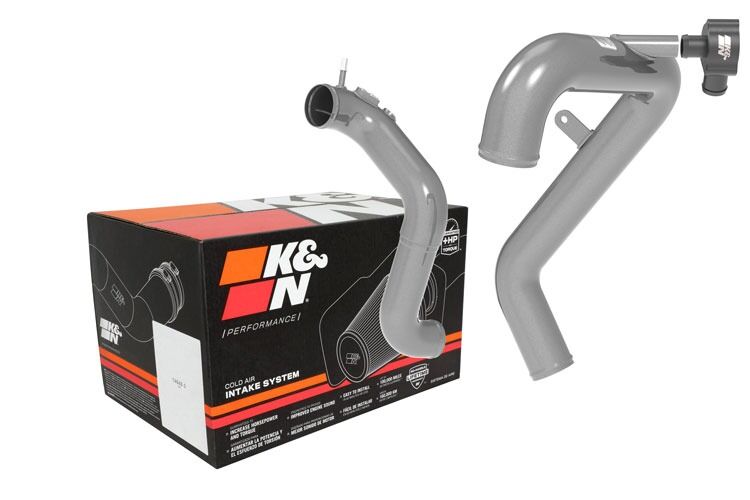

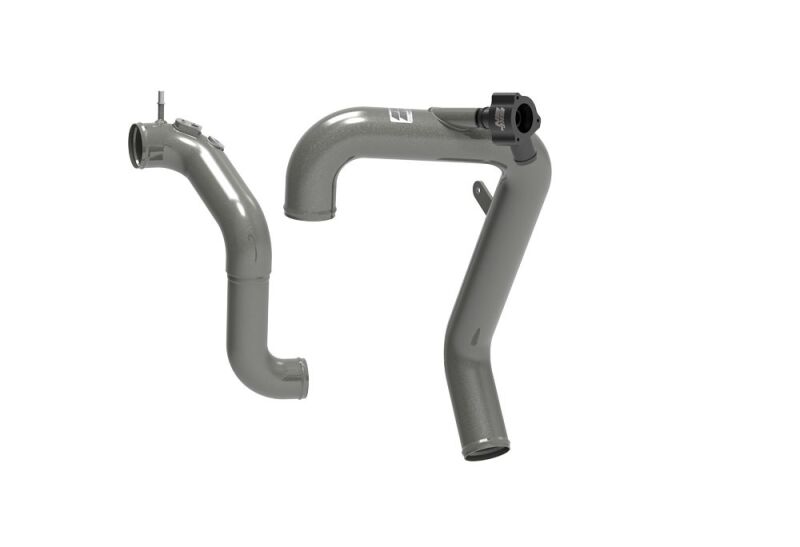

Charge Pipe Kit Intercooler Pipe K&N #KNN77-1005KC

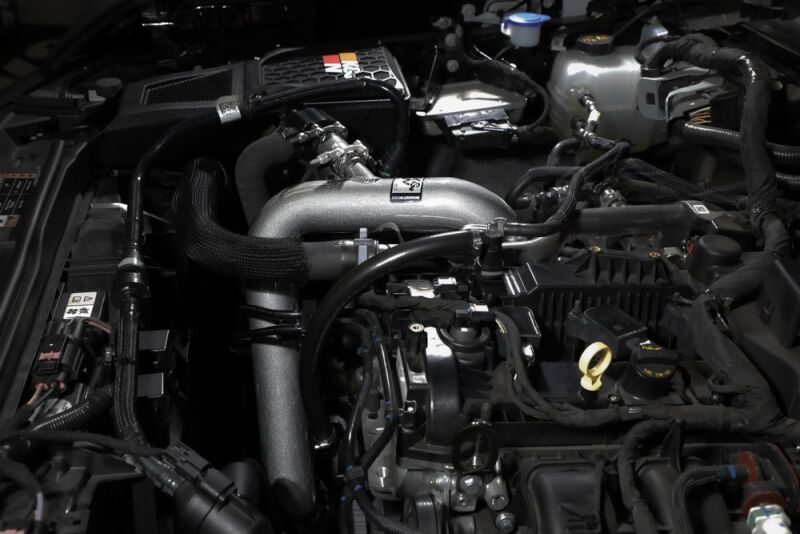

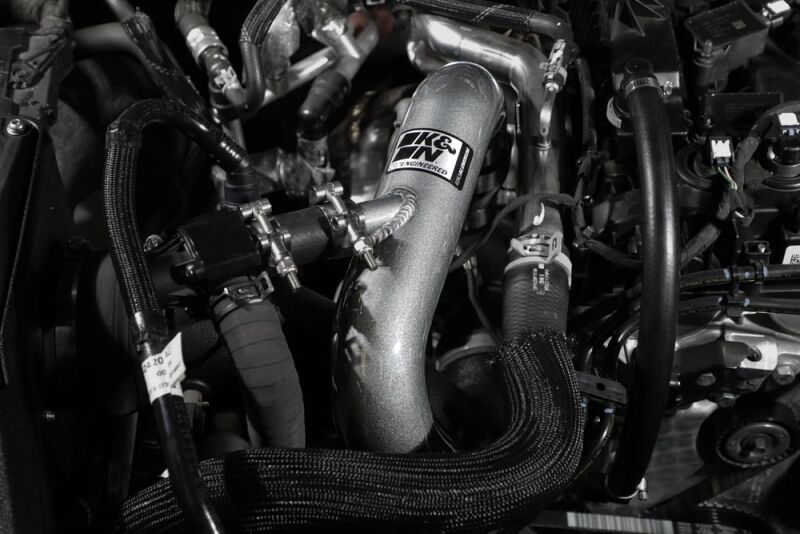

K&N charge pipe kits are made of free-flowing, mandrel-bent aluminum tubes designed to replace the restrictive factory intercooler piping on specific turbo charged vehicles and offer a wide range of performance customization options. K&N charge pipes have been engineered to reduce turbo charged air pressure loss as well as dramatically increase air flow from the turbo through the intercooler. The charge pipes are constructed from lightweight aluminum with a durable gunmetal gray powder coated finish. For additional horsepower gains and improved engine compartment aesthetics, K&N offers a wide range of cold air intake systems that can be installed into your vehicle as well. The charge pipe kits are easy to install with commonly available tools and it is backed by K&N’s No-Hassle Lifetime Limited Warranty.

K&N’s charge pipe kits are engineered to reduce turbo charged air pressure loss as well as dramatically increase air flow from the turbo through the intercooler

  • Easy to install with commonly available tool
  • Port can accommodate water-methanol or nitrous oxide injection kits
  • Low restriction aluminum tubing

  • Title K&N 77-1005KC Charge Pipe Kit
  • Color Gunmetal Gray
  • Color Gunmetal Gray
  • Package Contents 1 Intercooler Pipe
  • Product Style Intercooler Pipe
  • Weight 10 lb (4.5 kg)
  • California Restricted Not legal for sale or use in California
  • Intake Pipe Material Aluminum
  • Estimated Horsepower Gain 9.65 HP @ 5671 RPM
  • Horse Power Increase 10 HP
  • RPM 5671
  • Overall Length 60 in (1524 mm)
  • Street Legal In All US States Not legal for sale or use in California on any pollution controlled motor vehicle.
  • TUV Approved (Europe) No
  • Package Material Corrugated
  • Package Type Box
  • Warranty No-Hassle Lifetime Limited
  • Outlet Outside Diameter 3 in (70 mm)
  • Outlet Inside Diameter 3 in (70 mm)
  • Inlet Inside Diameter 3 in (64 mm)
  • Prop 65 Yes/No Yes
  • Prop 65 (C, R or CR) CR
  • Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
  • Prop 65 Warning Label https://www.knfilters.com/images/l/prop65.jpg
  • Components Included Yes
  • Estimated Torque Gain 12 lbft
×
