3" x 3" Weld-On Tie-Down D-Ring (6,100 lbs, Raw Steel) Tow Ring CURT #CUR83750

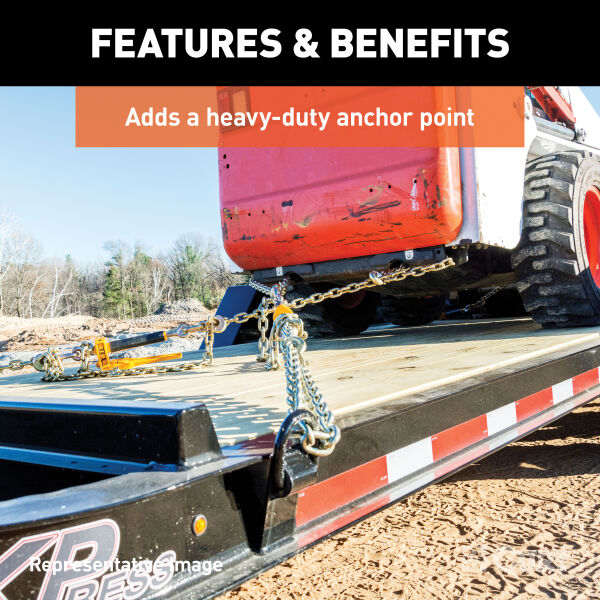

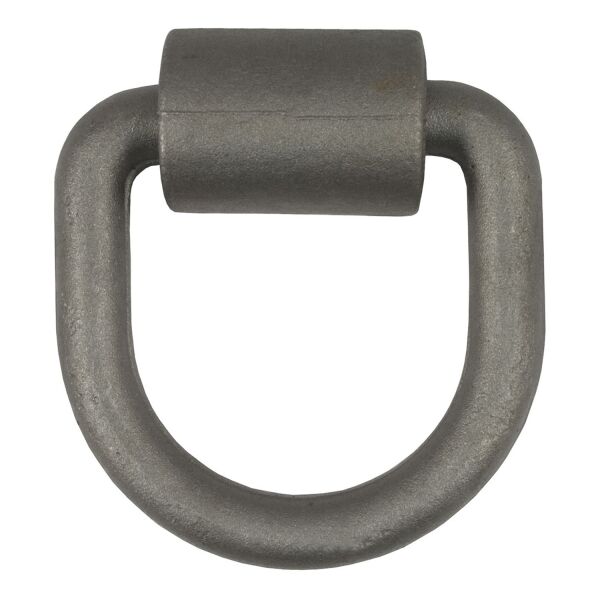

Making sure that your cargo is tied down and fully secure for the journey is important for any towing job. Not only is unsecured cargo a danger to you, your passengers and your fellow drivers, but it can also cause damage to your trailer, pickup truck bed or vehicle cargo area, as well as to the cargo itself. Together with our cargo straps and safety chains, CURT tiedown anchors are easy to mount in any trailer, truck or full-size van, and they help keep your items safe for the road ahead. This particular D-ring tiedown anchor is designed to be welded onto a metal frame to add a solid anchoring point for cargo straps, ropes, cables or chains. It features forged steel construction and a working load capacity of 6,100 lbs. (18,000 lbs. break strength), making it strong enough for many commercial and industrial applications. The heavy-duty D-ring and bracket feature a raw finish to be readily welded on, and the ring offers a large opening to accept clevis hooks.

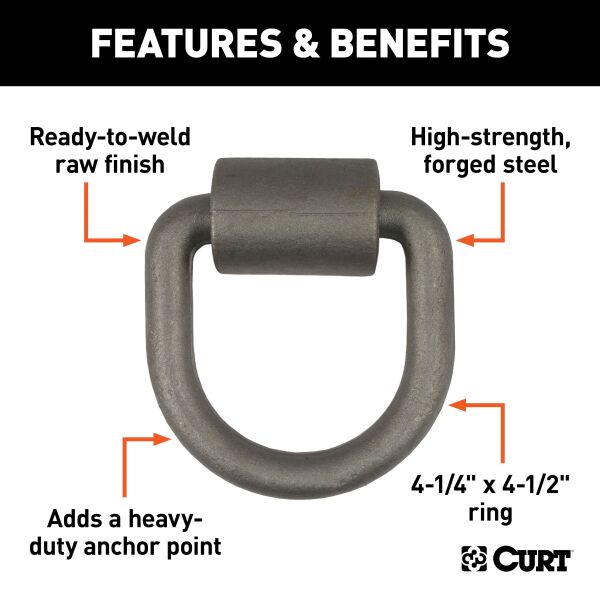

  • CURT 83750 4-1/4 x 4-1/4-Inch Weld-On Trailer D-Ring Tie Down Anchor, 18,000 lbs Break Strength
  • Perfect for heavyweight cargo management in trailers and trucks
  • Rated for a working load capacity of 6,100 lbs. (18,000 lbs. break strength)
  • Raw finish allows for ready welding of mounting bracket
  • Constructed from high-strength, forged steel
  • 2-1/4" x 1-5/8" x 1-1/4" weld-on mounting bracket provides a sturdy base
  • 4-1/4" x 4-1/4" x 5/8" ring offers a reliable anchor (3" x 3" I.D.)
  • Pallet Qty - XA 0.000
  • Finish Raw
  • WARNING CA Proposition 65 No
  • Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Side Application Type Description - XA Blank
  • Finish - XA RAW
  • Material - XA Blank
  • Sales Family Code - XA TPACC
  • Mount Type Description - XA Blank
  • Retail Height - XA 2.000
  • Rate Class - XA 50.0
  • Item Class - XA OBS
  • Shipping Weight - XA 1.800
  • Parcel Allowed - XA Yes
  • Item Width - XA 0.000
  • Retail Width - XA 4.000
  • Tariff 301 - XA Yes
  • Item Height - XA 0.000
  • Item Length - XA 0.000
  • Retail Length - XA 5.000
  • Box Width in Inches - XA 4
  • Class ID 0
  • Box Length in Inches - XA 7
  • Product Weight - XA 0.000
  • Box Height in Inches - XA 2
  • Sales Family Description - XA TRAILER PARTS AND ACCESS
  • Sales Group Description - XA TIE DOWN ANCHORS
  • Break Strength 18,000 LB
  • Master Case ITF14 0
  • Master Case ITF14 - XA 0
  • Master Case Length Inches - XA 12.600
  • Master Case Qty - XA 25
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 47.000
  • Master Case Width Inches - XA 9.840
  • Pallet Case Per - XA 36
  • Pallet Case Per Layer - XA 9
  • Pallet Cases Per - XA 36
  • Pallet Cases Per Layer - XA 9
  • Pallet Layer of Cases - XA 4
  • Pallet Total Height Inches - XA 30.000
  • Pallet Total Weight Per - XA 1730.000
  • Prop 65 Label Text - XA Blanks
  • Prop 65 Material - XA Unknown
  • Prop 65 Reason - XA Unknown
  • Prop 65 Warning Label Type - XA Unknown
  • Prop 65 Warning Y/N - XA NO
  • Truckload Cases Qty - XA 0
  • Truckload Pallets Qty - XA 0
  • Truckload Units Qty - XA 0
  • Truckload Volume Cubic Feet - XA 0.00000
  • Truckload Weight - XA 0
  • Container Cases Qty - XA 720
  • Container Pallet Qty - XA 20
  • Container Unit Qty - XA 18000
  • Container Volume Cubic Feet - XA 285.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 0
  • Container Weight Lbs - XA 34604
  • Master Case Height Inches - XA 5.510
  • Master Case Inner Pack Qty - XA 0
  • Container Load Type - XA PALLETS
  • Container Type - XA 20GP
×
