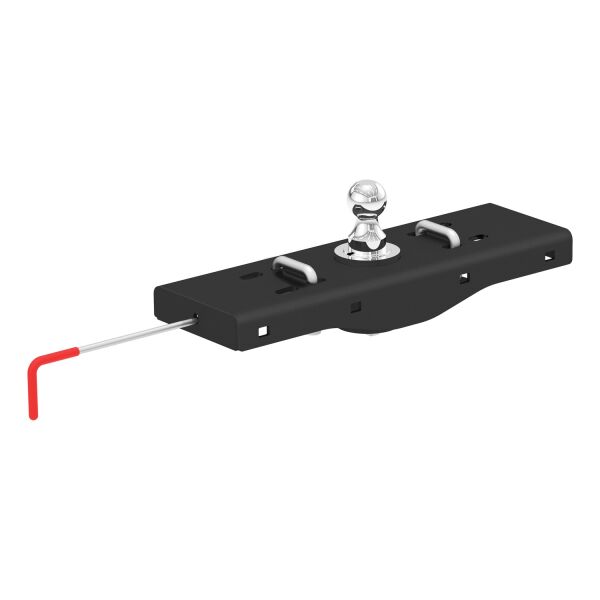

Double Lock EZr Gooseneck Hitch, 2-5/16" Ball, 30K (Brackets Required) Gooseneck Trailer Hitch CURT #CUR60619

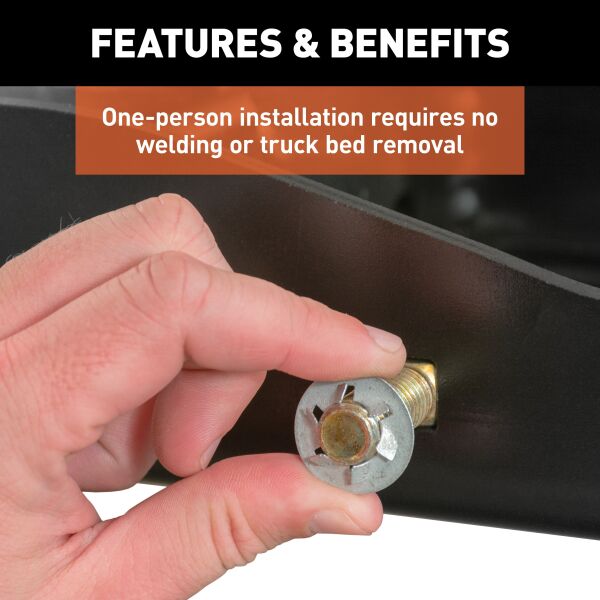

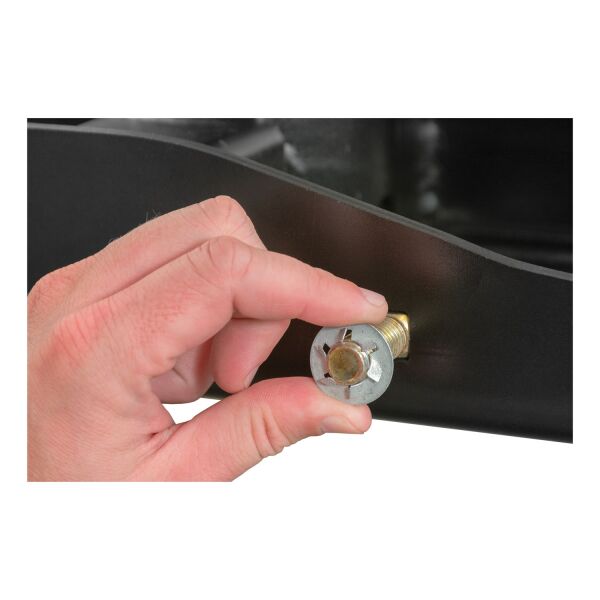

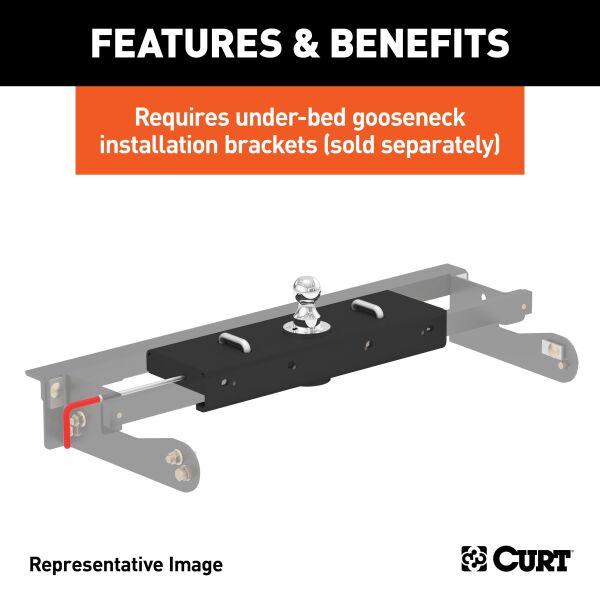

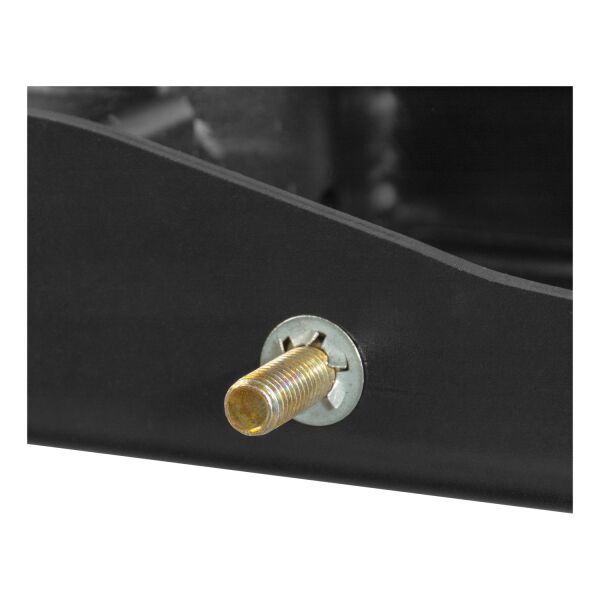

CURT introduces the Double Lock EZr gooseneck hitch. This under-bed gooseneck not only boasts 30,000 lbs. of towing capacity, but it also offers easier installation and operation. With its slotted safety chain holes, patented center locator and vehicle-specific installation brackets, mounting the Double Lock EZr is quick and painless. It also features a double-locking design and a flip-and-store trailer ball to make gooseneck towing look easy. Installation with the Double Lock EZr requires only one person, using retainer clips to keep bolts secure and the center section fully supported while mounting it into place. It also uses our exclusive, patented center locator to eliminate the need for meticulous measuring and ensure error-free drilling. This model also has slotted safety chain holes that allow you to align the safety chain loops with the rails of your truck bed for optimum functionality. The EZr also uses carriage bolts whenever possible for one-wrench tightening and does not require the exhaust to be lowered during installation. Operation of the Double Lock EZr gooseneck hitch is simple and safe. It uses two locking pins and a 3/8" diameter handle to keep the gooseneck ball locked into the center section and your gooseneck trailer more secure. The ball features a flip-over design that allows you to store it inside the receiver hole when not in use, keeping your truck bed completely free of obstructions and preventing the trailer ball from being lost. With a fortified center section, this hitch offers a gross trailer weight capacity up to 30,000 lbs. and a vertical load limit of 7,500 lbs., giving you the power you need to get the job done right.

• CURT 60619 Double Lock EZr Gooseneck Hitch with 2-5/16-Inch Flip-and-Store Ball, 30,000 lbs

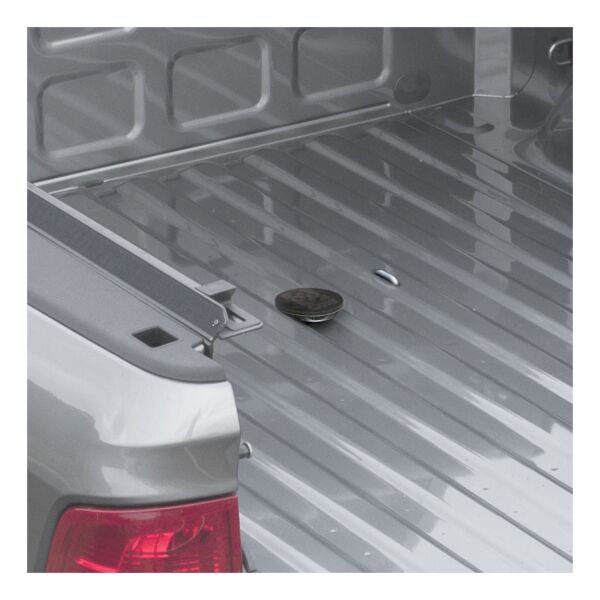

• Rubber hole cover helps prevent corrosion in trailer ball hole
• Heavy-duty 3/8" diameter handle for solid operation

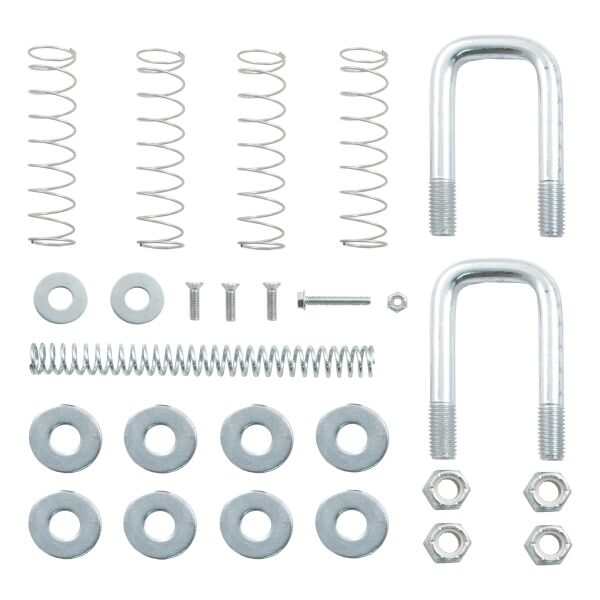

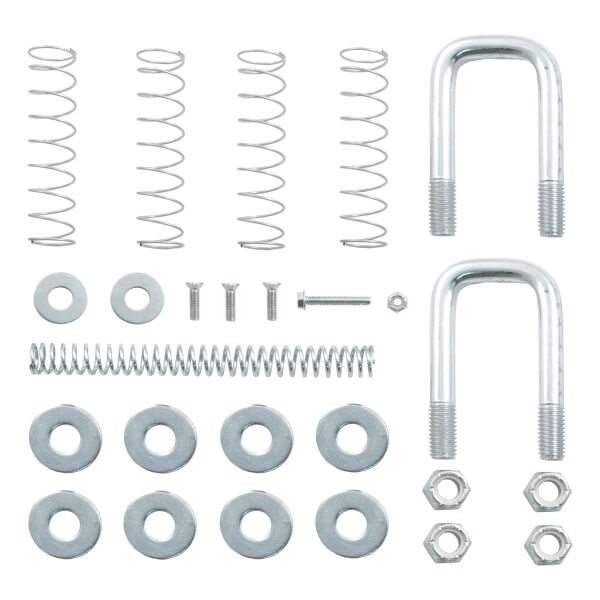

• Includes strong 5/8" safety chain loops and grade-8 hardware
• Protected by a durable A-coat finish
• Tested for safety in accordance with SAE J2638

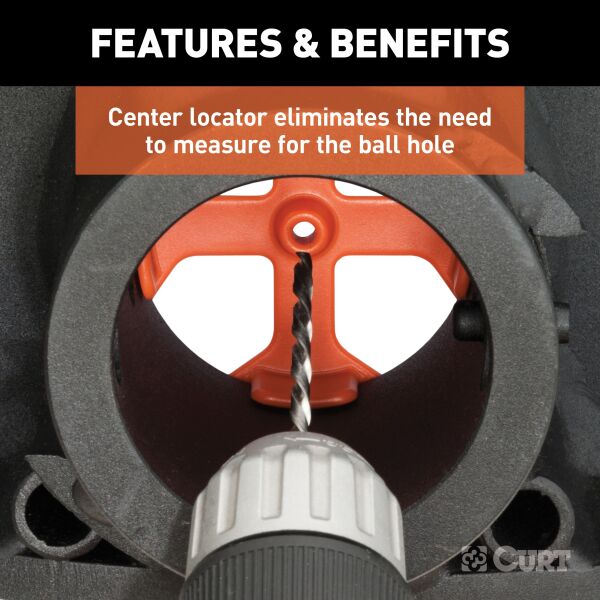

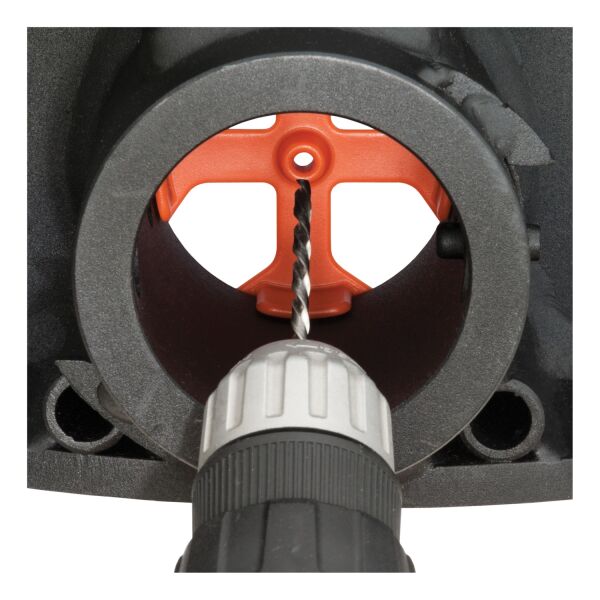

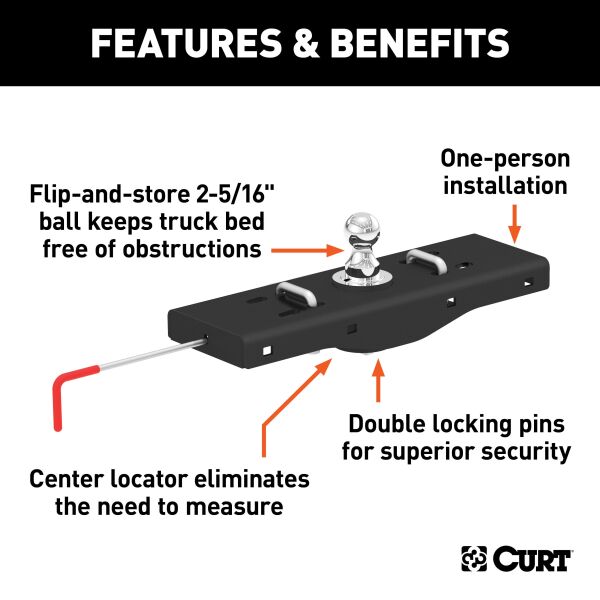

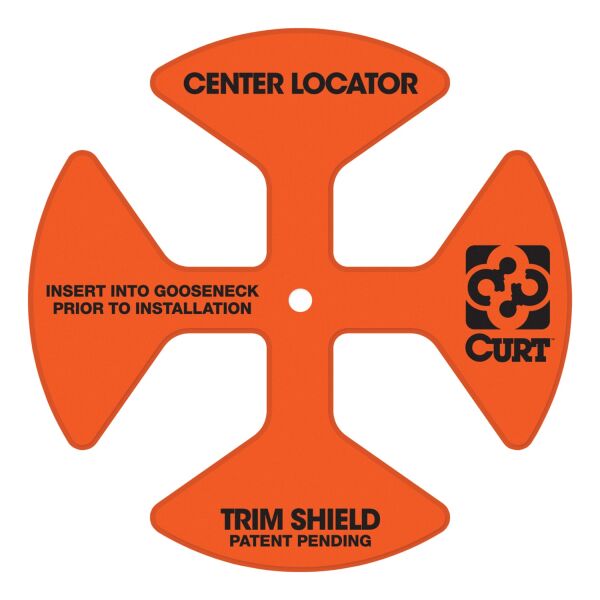

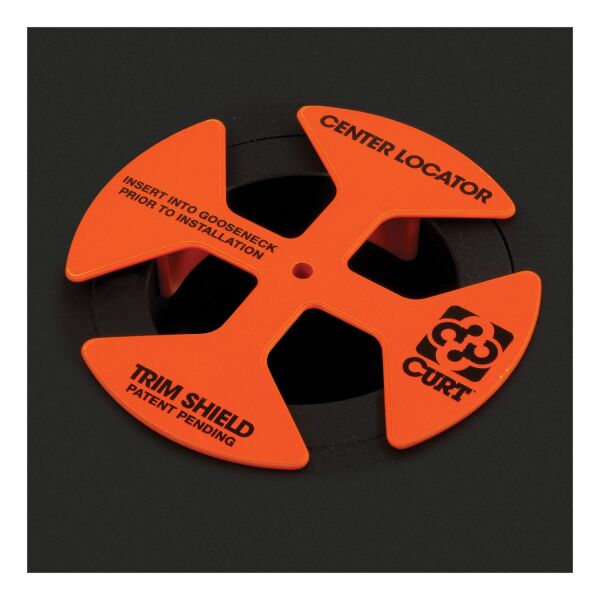

• Center locator eliminates the need to measure where the ball hole should be

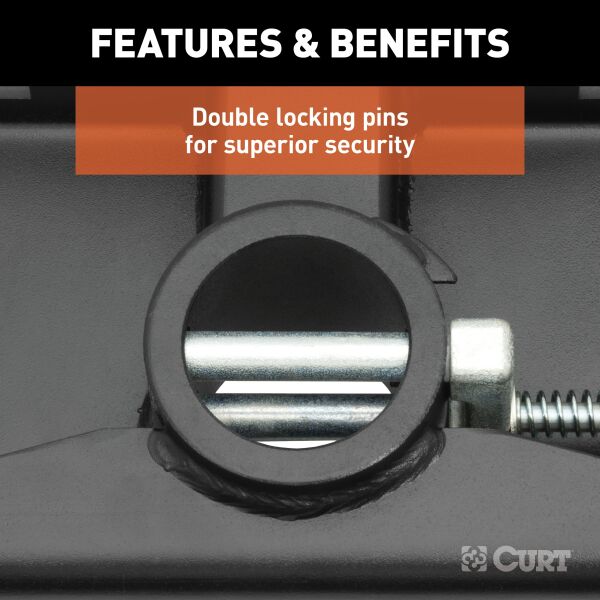

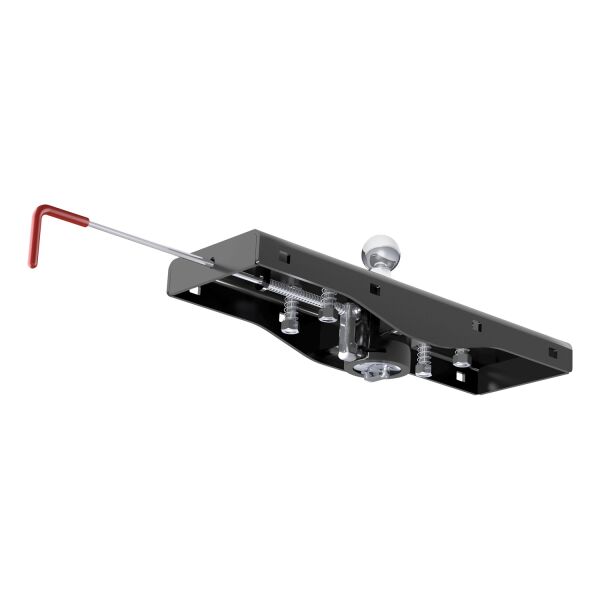

• Double locking pins for superior trailer and trailer ball security

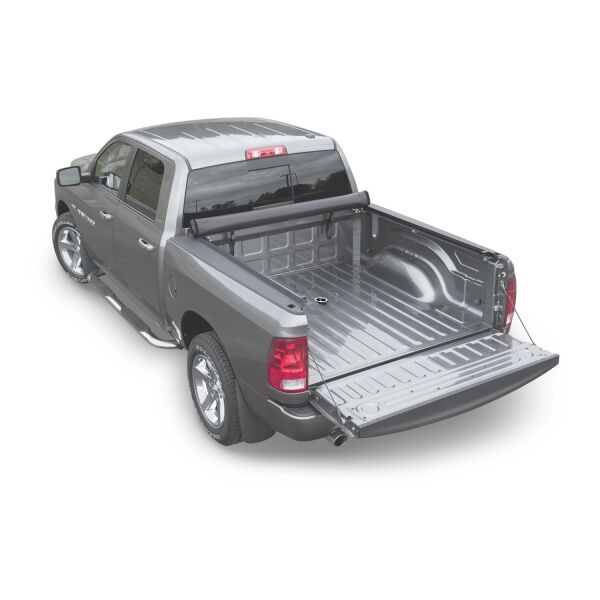

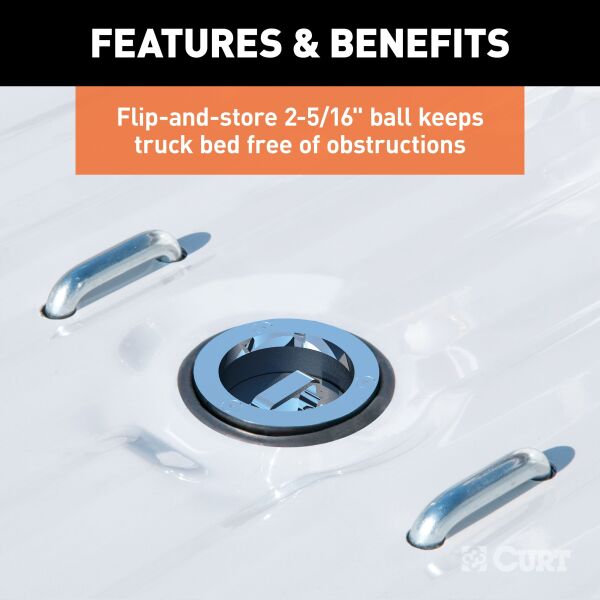

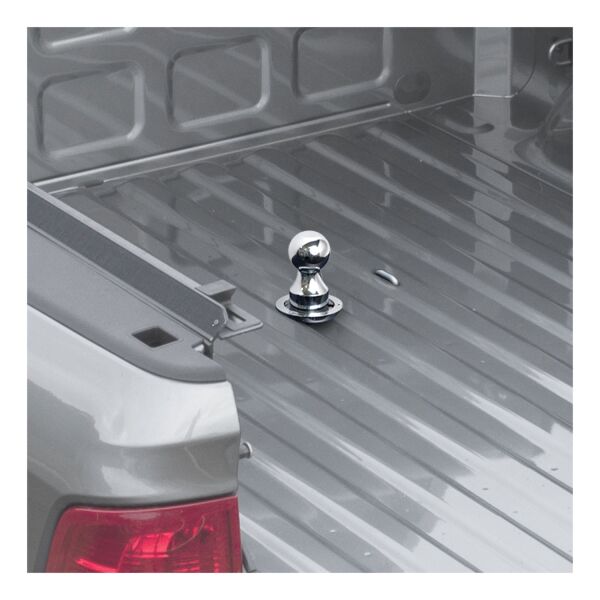

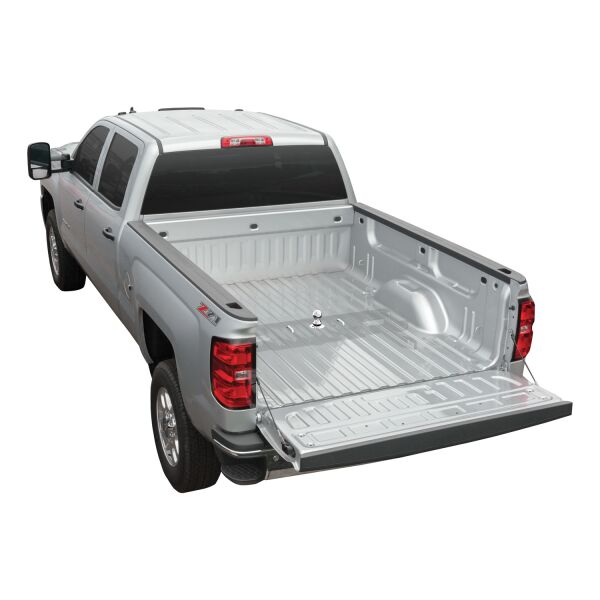

• Flip-and-store ball keeps truck bed free of obstructions
• Removable chrome-plated 2-5/16" trailer ball fits most gooseneck trailers
• Slotted safety chain holes allow for proper alignment with truck bed rails
• Chrome-plated trim ring provides a finished look
