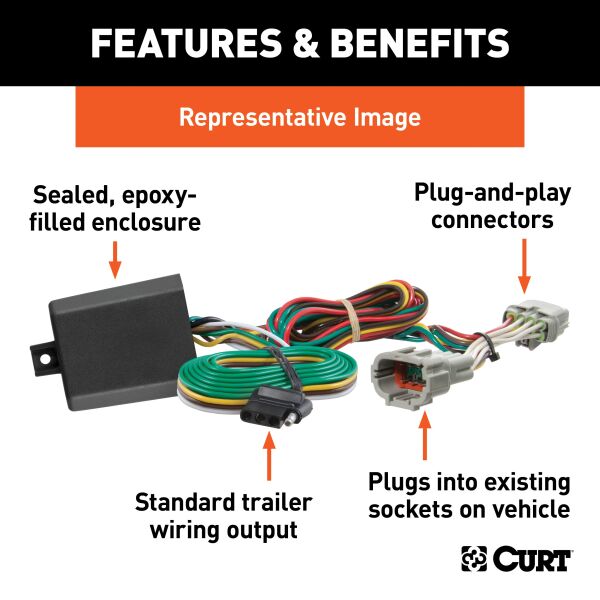

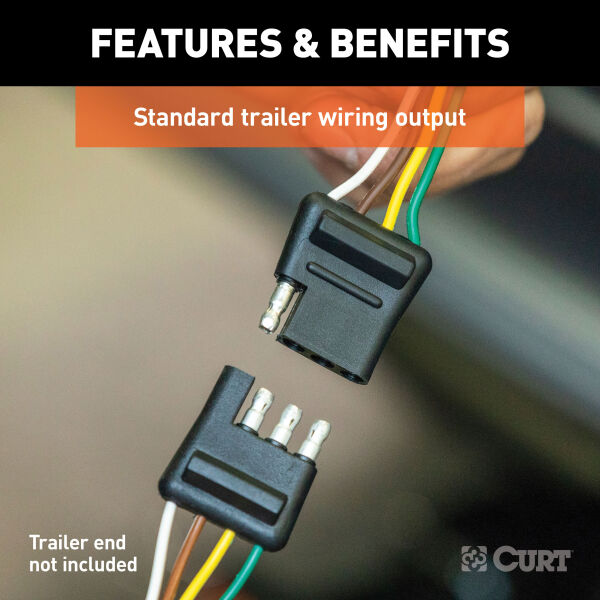

If your vehicle is not equipped with wiring for towing a trailer, CURT custom wiring is the ideal solution. A custom wiring harness -- also called a T-connector -- is a simple, plug-and-play electrical device that plugs into your automotive electric system and provides a standard, universal trailer wiring connection. This is done using two or more vehicle-specific, OEM-compatible connectors to plug into the taillight assembly, eliminating the need for cutting, splicing and soldering during installation. Custom wiring harnesses are made vehicle-specific, and while they are not available for all vehicles, they do offer one of the fastest, easiest and most secure ways to wire a vehicle for towing. This particular plug-in harness provides a 4-way flat connector socket and is designed to be a custom wiring harness to fit certain years of the Ford F-150 (with backup sensors and without LED taillights

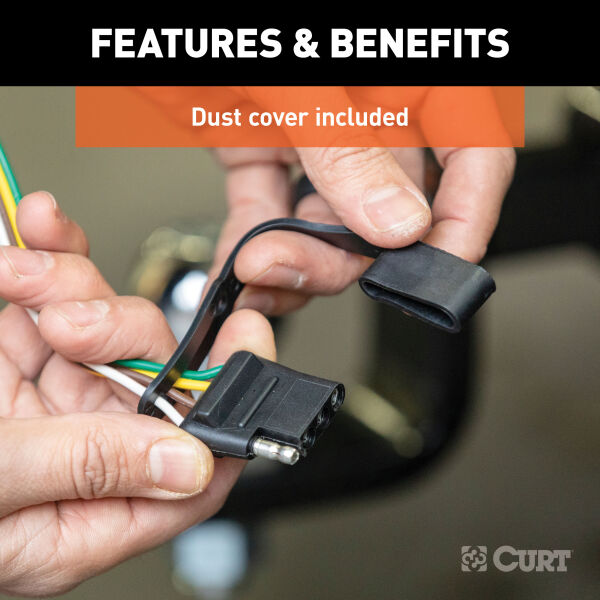

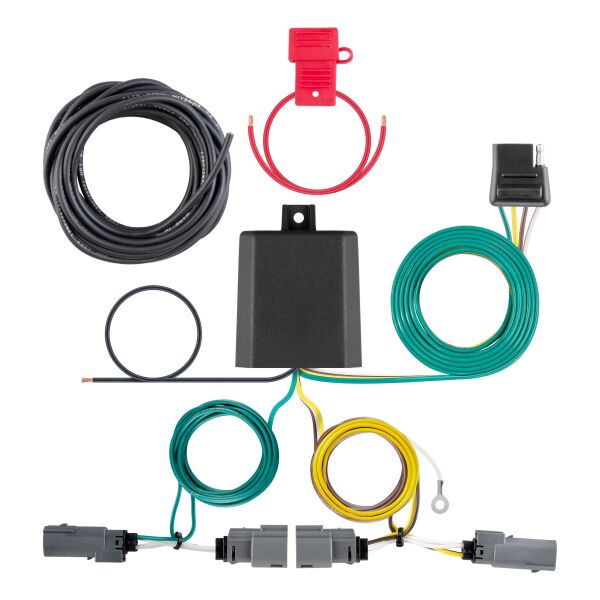

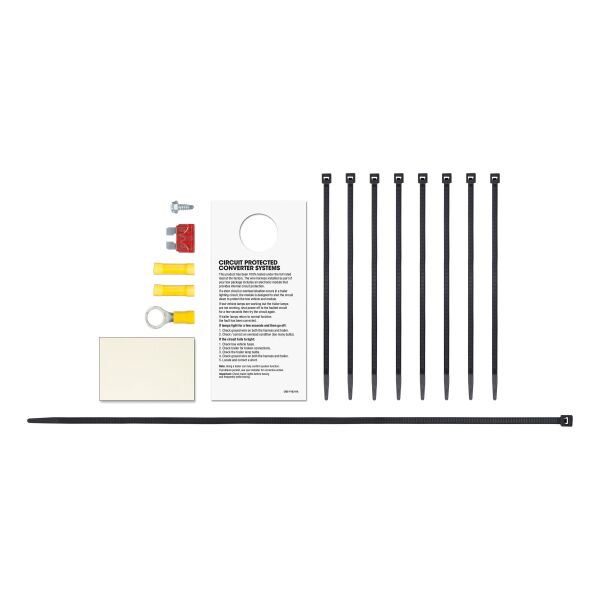

to verify your vehicle compatibility, see application info). It comes with all necessary wiring components to establish a reliable trailer wiring connection, as well as a dust cover to keep the connector clean when not in use. You have a picture in mind of your next destination -- maybe it's the boat landing at your favorite fishing spot, maybe it's a campsite that overlooks one of nature's masterpieces, or maybe it's the next big jobsite. However, turning that picture into a reality takes more than just daydreaming. It takes a solid connection and the right amount of power. CURT custom wiring is made with some of the most sophisticated technology in the industry and is designed to install with ease, giving you a long-lasting electrical connection for your towing hitch setup.
WARNING CA Proposition 65 Message WARNING: This product can expose you to chemicals including Di(2-ethylhexyl) phthalate; which is known to the State of California to cause cancer; and Di-n-butyl phthalate; which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
WarrantyOne-Year Limited Warranty
Side Application Type Description - XANot Applicable
Finish - XAN/A
Material - XATHERMOPLASTIC RUBBER
Sales Family Code - XAELECT
Mount Type Description - XANot Applicable
Electrical System Type3W
Output Type4-Way Flat
Tail Light Circuits7.5 Amps
Turn and Brake Circuits5.0 Amps
Converter TypeCircuit Protected, Powered, Potted
Retail Height - XA3.000
Rate Class - XA125.0
Item Class - XACME
Shipping Weight - XA1.572
Parcel Allowed - XAYes
Item Width - XA0.000
Retail Width - XA6.000
Tariff 301 - XANo
Item Height - XA0.000
Item Length - XA0.000
Retail Length - XA9.000
Box Width in Inches - XA0
Class ID11
Box Length in Inches - XA0
Product Weight - XA0.000
Box Height in Inches - XA0
Sales Family Description - XAELECTRICAL COMPONENTS
Sales Group Description - XATCONN
Battery-PoweredYes
T-Connector LocationT1,T2
Master Case ITF140
Master Case ITF14 - XA20612314564655
Master Case Length Inches - XA24.000
Master Case Qty - XA12
Master Case Volume Cubic Feet - XA0.00000
Master Case Weight Lbs - XA19.864
Master Case Width Inches - XA10.000
Pallet Case Per - XA0
Pallet Case Per Layer - XA0
Pallet Cases Per - XA32
Pallet Cases Per Layer - XA8
Pallet Layer of Cases - XA4
Pallet Total Height Inches - XA47.500
Pallet Total Weight Per - XA665.648
Prop 65 Material - XADi(2-ethylhexyl) phthalate/Di-n-butyl phthalate
Prop 65 Reason - XAPVC Coated Wire
Prop 65 Warning Label Type - XACancer and Birth Defect Causing
