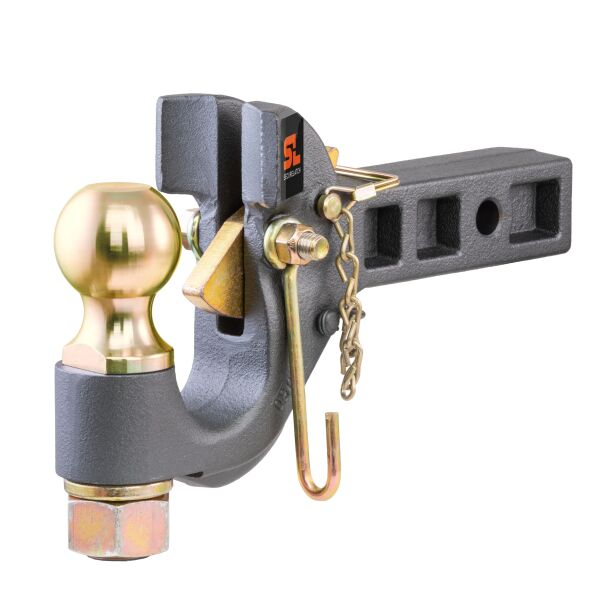

SecureLatch Receiver-Mount Ball & Pintle Hitch (2" Shank, 2-5/16" Ball, 14K) Trailer Hitch Pintle Hook Mount CURT #CUR48406

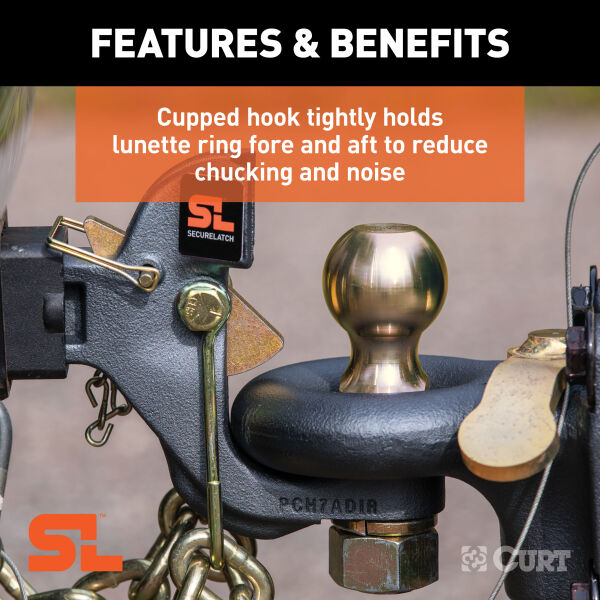

The CURT SecureLatch pintle ball hitch makes coupling to your trailer virtually automatic with its innovative auto-locking technology. The auto-lock automatically latches the lunette ring onto the hook without any manual coupling required. Strike the integrated back plate, drop the lunette ring down onto the hook and you're ready to tow -- just insert the secondary safety pin! This SecureLatch ball and pintle hook combination also has a unique, cupped design to hold the lunette ring more tightly, greatly reducing chucking noises common in pintle towing. This pintle hitch is rated for 14,000 pounds gross trailer weight and 14,000 pounds ball capacity. It fits any industry-standard 2-inch receiver. The ball and hook combo can be coupled to a 2-5/16-inch standard coupler or 2-1/2-inch or 3-inch diameter lunette rings.

CURT 48406 SecureLatch Receiver-Mount 2-5/16-Inch Ball and Pintle Hitch Combination, 2-In Shank, 14,000 Pounds

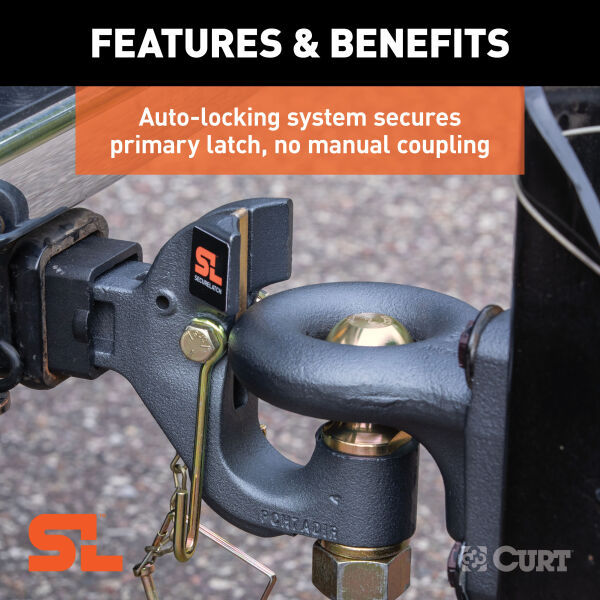

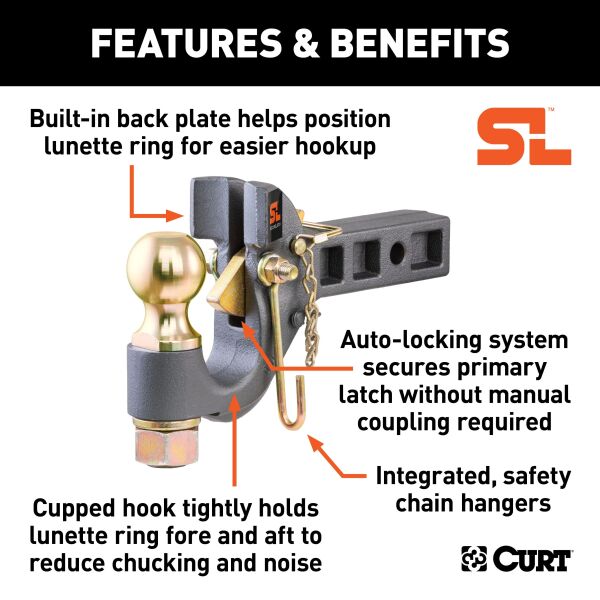

  • Auto-locking system secures primary latch without manual coupling required

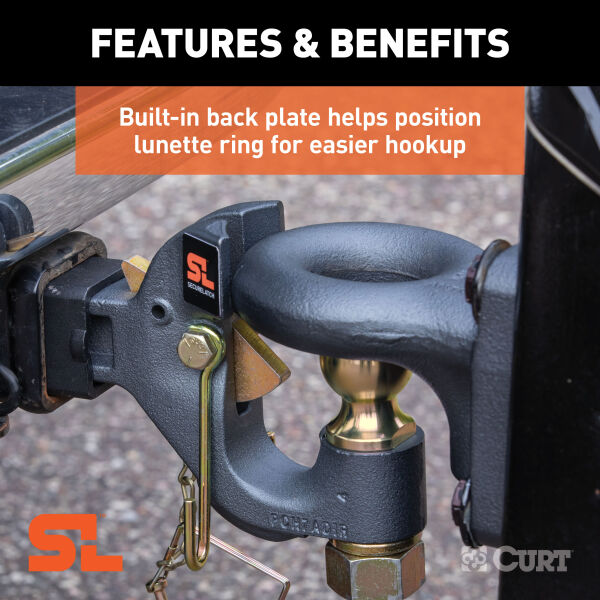

  • Built-in back plate helps position coupler or lunette ring for easier hookup

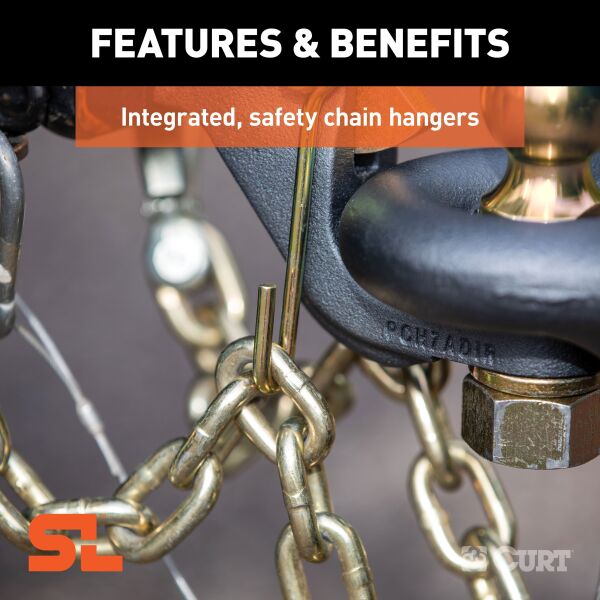

  • Integrated, intermediate safety chain hangers keep chains off the ground
  • Rated for 14,000 lbs. gross trailer weight and 14,000 lbs. ball capacity
  • Fits trailer hitches with a 2" x 2" receiver tube opening
  • Couples to 2-5/16" couplers or lunette rings with a 2-1/2" or 3" inside diameter
  • Latch can be pinned in open position to clear standard trailer coupler
  • Cast iron construction is austempered for superior strength and wear resistance

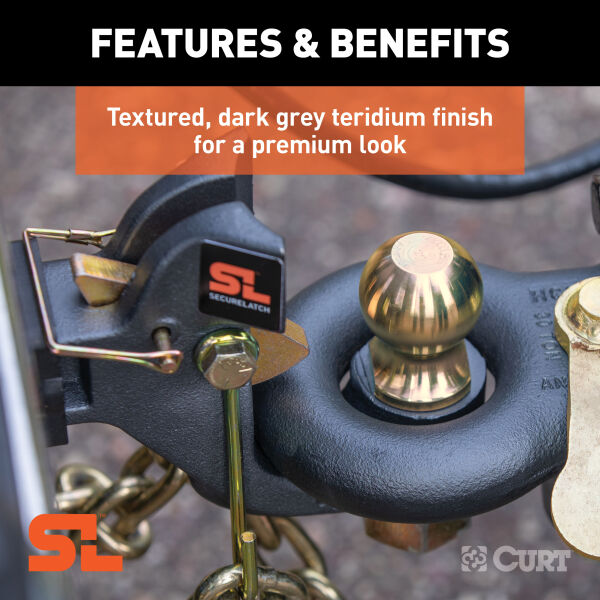

  • Textured, dark grey teridium powder coat for a premium finish
  • Bright gold zinc-plated hardware for long-lasting corrosion resistance

  • Pallet Qty - XA 0.000
  • Finish DARK GREY TERIDIUM
  • WARNING CA Proposition 65 No
  • Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Side Application Type Description - XA Not Applicable
  • Finish - XA DARK GREY TERIDIUM
  • Material - XA Carbon Steel
  • Sales Family Code - XA ACCES
  • Mount Type Description - XA Not Applicable
  • Receiver Tube Size 2.000 in.
  • Receiver Tube Size 2 IN
  • Receiver Tube Size 2
  • Ball Diameter 2-5/16 IN
  • Retail Height - XA 6.000
  • Rate Class - XA 60.0
  • Item Class - XA OBS
  • Shipping Weight - XA 16.900
  • Parcel Allowed - XA Yes
  • Item Width - XA 9.960
  • Retail Width - XA 10.500
  • Tariff 301 - XA Yes
  • Item Height - XA 5.660
  • Item Length - XA 14.070
  • Retail Length - XA 13.500
  • Box Width in Inches - XA 4
  • Box Length in Inches - XA 7
  • Product Weight - XA 16.900
  • Box Height in Inches - XA 2
  • Gross Trailer Weight (GTW) 14,000 LBS
  • Sales Family Description - XA ACCESSORIES
  • Sales Group Description - XA PINTLE MOUNT
  • Ball Capacity 14,000 LBS
  • Master Case ITF14 0
  • Master Case ITF14 - XA 0
  • Master Case Length Inches - XA 14.070
  • Master Case Qty - XA 1
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 17.900
  • Master Case Width Inches - XA 9.960
  • Pallet Case Per - XA 168
  • Pallet Case Per Layer - XA 12
  • Pallet Cases Per - XA 168
  • Pallet Cases Per Layer - XA 12
  • Pallet Layer of Cases - XA 14
  • Pallet Total Height Inches - XA 81.490
  • Pallet Total Weight Per - XA 3040.200
  • Prop 65 Label Text - XA Blanks
  • Prop 65 Material - XA Unknown
  • Prop 65 Reason - XA Unknown
  • Prop 65 Warning Label Type - XA Unknown
  • Prop 65 Warning Y/N - XA NO
  • Truckload Cases Qty - XA 0
  • Truckload Pallets Qty - XA 0
  • Truckload Units Qty - XA 0
  • Truckload Volume Cubic Feet - XA 0.00000
  • Truckload Weight - XA 0
  • Container Cases Qty - XA 1680
  • Container Pallet Qty - XA 10
  • Container Unit Qty - XA 1680
  • Container Volume Cubic Feet - XA 0.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 0
  • Container Weight Lbs - XA 30402
  • Master Case Height Inches - XA 5.660
  • Master Case Inner Pack Qty - XA 0
  • Container Load Type - XA PALLETS
  • Container Type - XA 20GP
×
