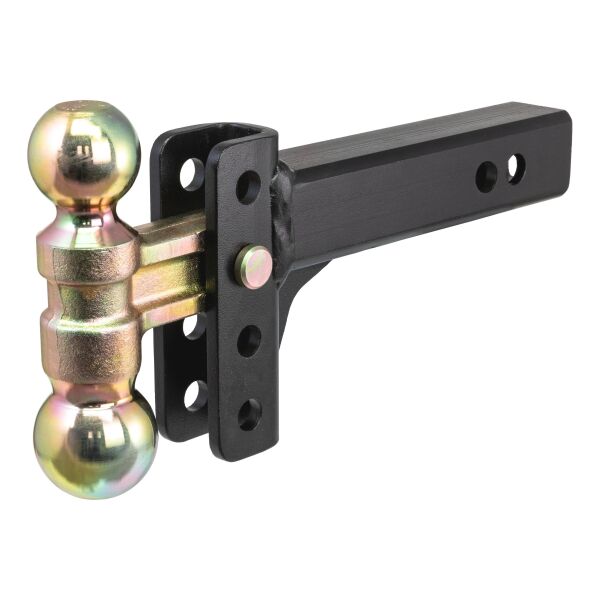

Slim Adjustable Channel Mount with Dual Ball (2" Shank, 10K, 3-3/4" Drop) Trailer Hitch Ball Mount CURT #CUR45903

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. The CURT slim adjustable channel-style ball mount provides a weight capacity of up to 10,000 pounds and only weighs 15 pounds. It has a shank size of 2 inches x 2 inches and features two different trailer ball sizes to accommodate two different coupler sizes: 2-inch and 2-5/16-inch. It also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 3-1/2-inch rise or lowered to a maximum of 3-3/4-inch drop, allowing you to make your trailer completely level in any towing situation. The CURT slim adjustable ballmount offers a gross trailer weight capacity of up to 8,000 pounds for the 2-inch ball and 10,000 pounds for the 2-5/16-inch ball. It allows you to tow a variety of trailers, and it features two pin holes in the shank to be mounted at an 10-inch or 11-inch length. All CURT channel-style adjustable hitches are made with sturdy steel construction and come with a black carbide powder coat finish for long-lasting rust, scratch and UV resistance.

CURT 45903 Slim Adjustable Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 3-3/4-In Drop, 2 or 2-5/16-Inch Balls, 10,000 Pounds

CURT is a leading manufacturer and marketer of top-quality towing products. The company offers American-made, custom-fit receiver hitches and wiring harnesses for nearly any vehicle on the road. They also market a broad range of trailer hitches, towing systems and related accessories. CURT is ?The First Name in Towing Products? for automobile and truck hitches, as well as RV, gooseneck and commercial towing systems. Products are marketed through retailers, distributors, installers, and e-tailers across the U.S. and Canada. CURT employs hundreds of associates, primarily at their manufacturing facility and corporate headquarters located in Eau Claire, Wisconsin. CURT operates 10 regional warehouses, each carrying over 2,500 items and has been twice named a Wisconsin ?Manufacturer of the Year?.

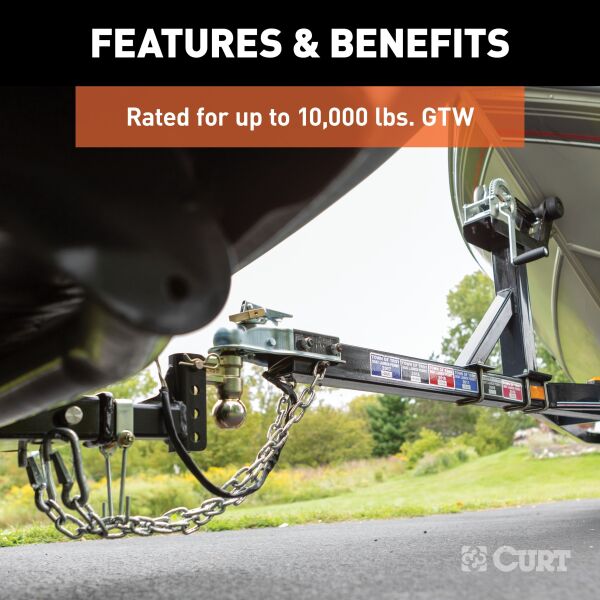

  • 2" ball rated for 8,000 lbs. and 2-5/16" ball rated for 10,000 lbs.

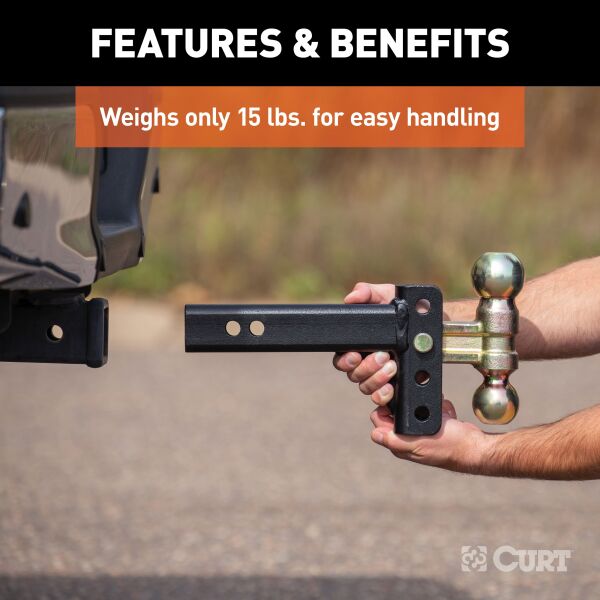

  • Weighs only 15 lbs. for easy handling, compared to other adjustable hitches
  • Shank can be flipped for a max rise of 3-1/2" and drop of 3-3/4"

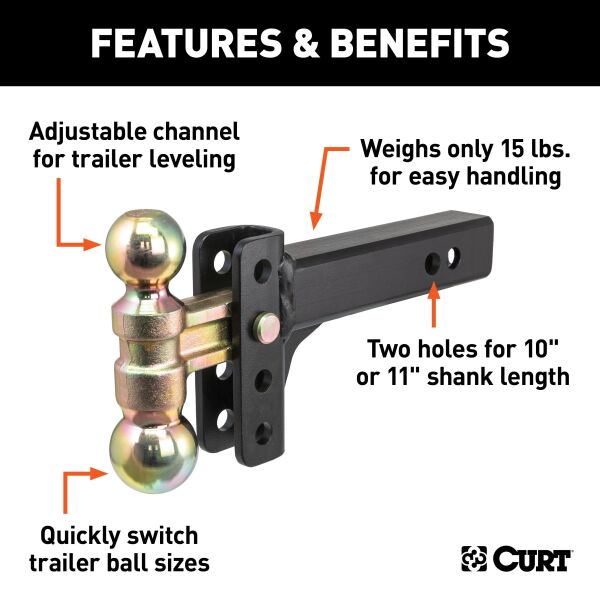

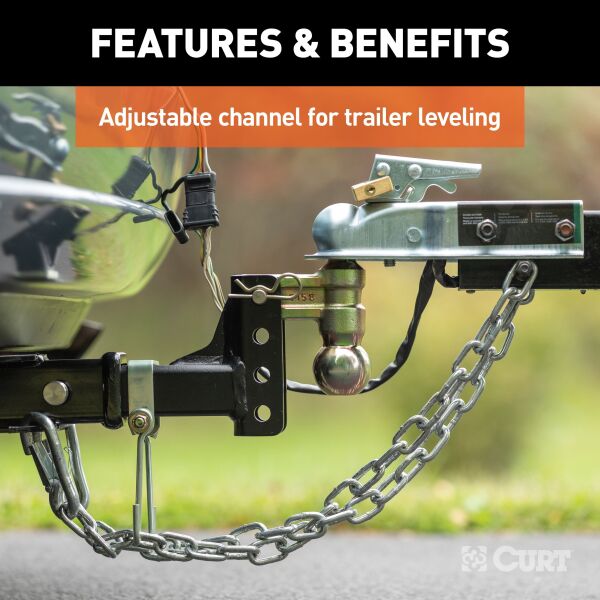

  • Adjustable channel mount allows for precise trailer leveling
  • One-pin dual ball attachment for quick, easy adjustment
  • Mounts on trailer hitches with a 2" x 2" receiver tube opening
  • Two hitch pin holes provide shank lengths of 10" or 11"

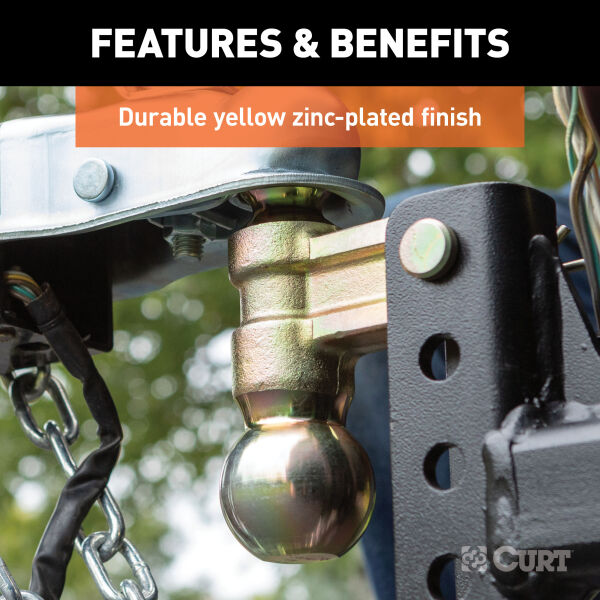

  • Protected by a highly durable carbide powder coat (zinc-plated dual ball)

  • Pallet Qty - XA 0.000
  • Finish Black Powder Coat
  • Style Adjustable
  • Style Adjustable
  • Drop 3.750 in.
  • WARNING CA Proposition 65 No
  • Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Side Application Type Description - XA Not Applicable
  • Finish - XA BLACK POWDER COAT
  • Material - XA Carbon Steel
  • Sales Family Code - XA ACCES
  • Mount Type Description - XA Not Applicable
  • Receiver Tube Size 2 IN
  • Rise 3.500 in.
  • Retail Height - XA 4.000
  • Rate Class - XA 60.0
  • Item Class - XA OBS
  • Shipping Weight - XA 15.000
  • Parcel Allowed - XA Yes
  • Item Width - XA 9.000
  • Retail Width - XA 10.000
  • Tariff 301 - XA No
  • Item Height - XA 3.000
  • Item Length - XA 12.000
  • Retail Length - XA 12.500
  • Box Width in Inches - XA 0
  • Box Length in Inches - XA 0
  • Product Weight - XA 14.000
  • Box Height in Inches - XA 0
  • Sales Family Description - XA ACCESSORIES
  • Sales Group Description - XA BALL MOUNT
  • Max Drop 3-3/4 IN
  • GTW/TW Ball 2 10,000 LB
  • GTW/TW Ball 1 8,000 LB
  • Max Rise 3-1/2 IN
  • Master Case ITF14 0
  • Master Case ITF14 - XA 0
  • Master Case Length Inches - XA 12.500
  • Master Case Qty - XA 1
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 15.000
  • Master Case Width Inches - XA 9.500
  • Pallet Case Per - XA 60
  • Pallet Case Per Layer - XA 10
  • Pallet Cases Per - XA 60
  • Pallet Cases Per Layer - XA 10
  • Pallet Layer of Cases - XA 6
  • Pallet Total Height Inches - XA 26.000
  • Pallet Total Weight Per - XA 950.000
  • Prop 65 Label Text - XA Blanks
  • Prop 65 Material - XA Unknown
  • Prop 65 Reason - XA Unknown
  • Prop 65 Warning Label Type - XA Unknown
  • Prop 65 Warning Y/N - XA NO
  • Truckload Cases Qty - XA 0
  • Truckload Pallets Qty - XA 0
  • Truckload Units Qty - XA 0
  • Truckload Volume Cubic Feet - XA 0.00000
  • Truckload Weight - XA 0
  • Container Cases Qty - XA 0
  • Container Pallet Qty - XA 0
  • Container Unit Qty - XA 0
  • Container Volume Cubic Feet - XA 0.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 0
  • Container Weight Lbs - XA 0
  • Master Case Height Inches - XA 3.500
  • Master Case Inner Pack Qty - XA 0
×
