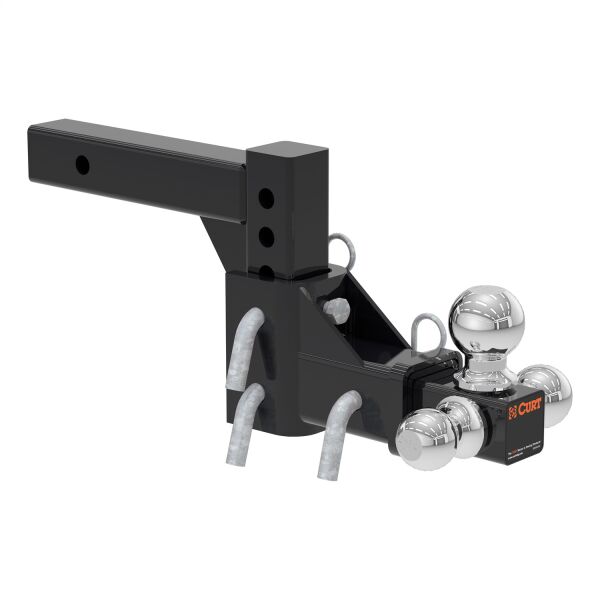

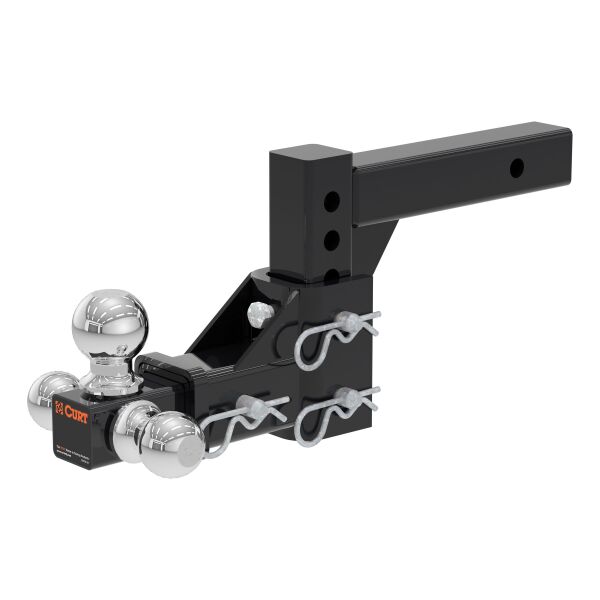

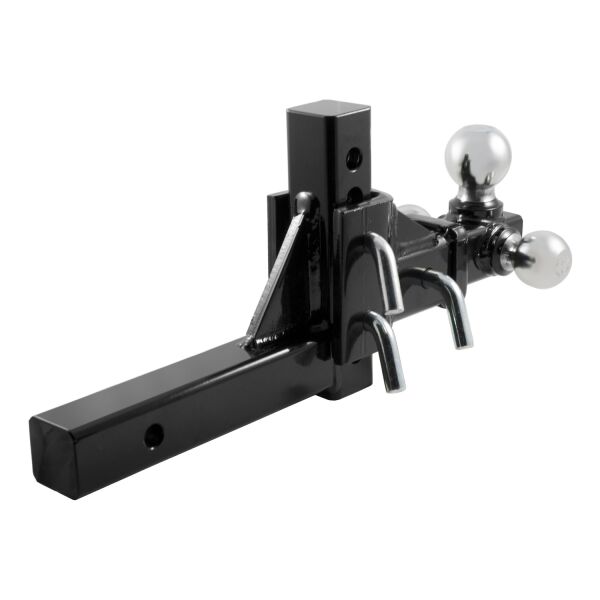

Adjustable Tri-Ball Mount (2" Shank, 1-7/8", 2" & 2-5/16" Balls) Trailer Hitch Multi-Ball Mount CURT #CUR45799

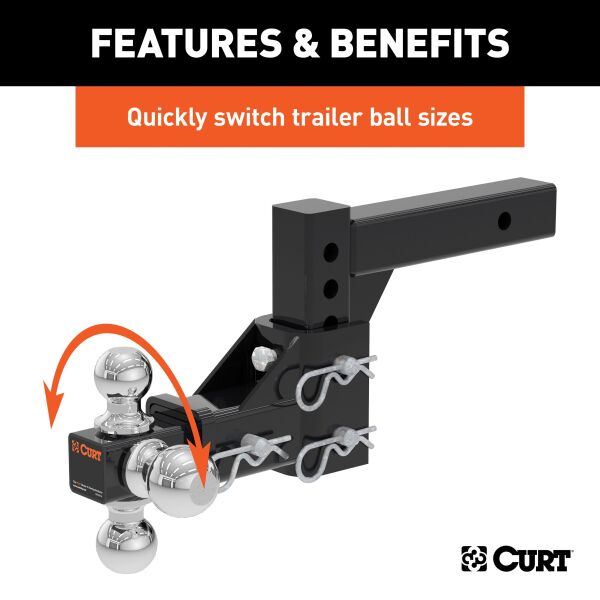

If you own multiple trailers or frequently tow a variety of loads, you know how much time and money are spent tailoring your towing system to each and every individual trailer. There is nothing more inconvenient than switching back and forth between a few different ball mounts and trying to remember which mount fits with which trailer. A CURT adjustable ball mount is your multipurpose towing solution. This CURT adjustable ball mount has a shank size of 2" x 2" and features three different trailer ball sizes to accommodate all standard coupler sizes: 1-7/8", 2" and 2-5/16". The 1-7/8" trailer ball offers a gross trailer weight capacity of 6,000 lbs. and a tongue weight capacity of 600 lbs. The 2" trailer ball has a GTW capacity of 7,500 lbs. and a TW capacity of 750 lbs., and the 2-5/16" ball offers 10,000 lbs. GTW and 1,000 lbs. TW. This allows you to easily tow a variety of trailers and to ensure that each one tows smoothly and securely. This tri-ball ball mount also features an adjustable shank assembly with multiple mounting holes for varying ball heights. Each trailer ball can be raised to a maximum of 5-3/4" rise or lowered to a maximum of 5-3/4" drop, allowing you to make your trailer completely level in any towing situation. It includes three 5/8" hitch pins for quick and secure installation, and the adjustable shank can also be used with our multipurpose ball mount attachment #45008 for even more versatility. All CURT adjustable ball mounts are made with sturdy steel construction and come with a durable powder coat finish for long-lasting rust, scratch and UV resistance.

CURT 45799 Adjustable Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 5-3/4-Inch Drop, 1-7/8, 2, 2-5/16-Inch Balls, 10,000 lbs

CURT is a leading manufacturer and marketer of top-quality towing products. The company offers American-made, custom-fit receiver hitches and wiring harnesses for nearly any vehicle on the road. They also market a broad range of trailer hitches, towing systems and related accessories. CURT is ?The First Name in Towing Products? for automobile and truck hitches, as well as RV, gooseneck and commercial towing systems. Products are marketed through retailers, distributors, installers, and e-tailers across the U.S. and Canada. CURT employs hundreds of associates, primarily at their manufacturing facility and corporate headquarters located in Eau Claire, Wisconsin. CURT operates 10 regional warehouses, each carrying over 2,500 items and has been twice named a Wisconsin ?Manufacturer of the Year?.

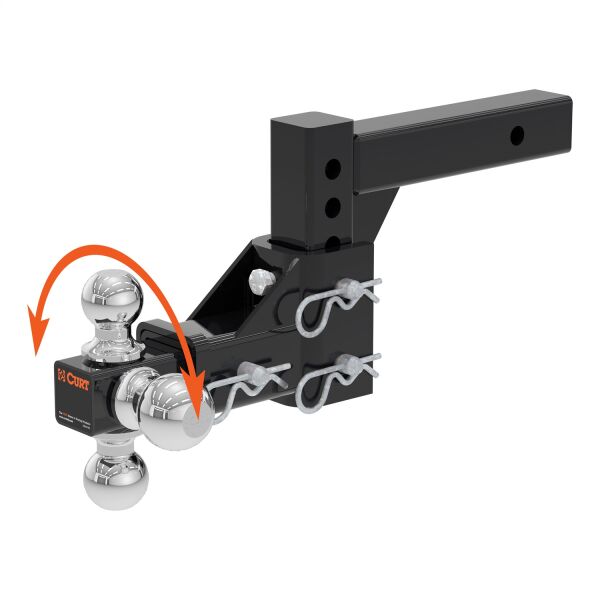

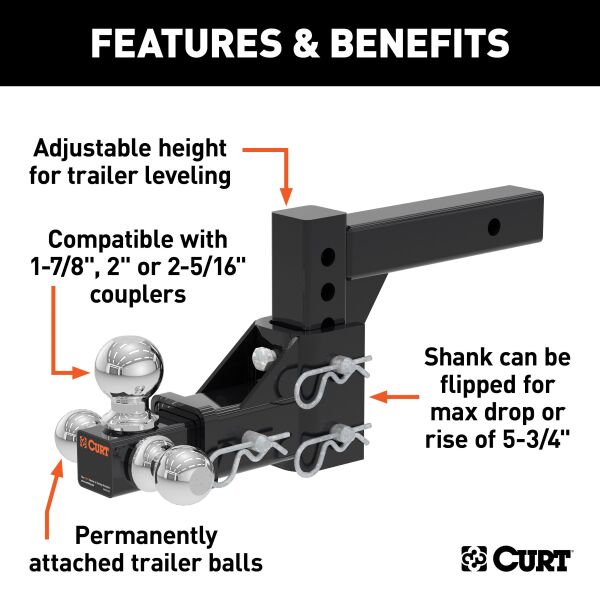

  • Fits 1-7/8", 2" or 2-5/16" couplers
  • Mounts on trailer hitches with a 2" x 2" receiver tube opening

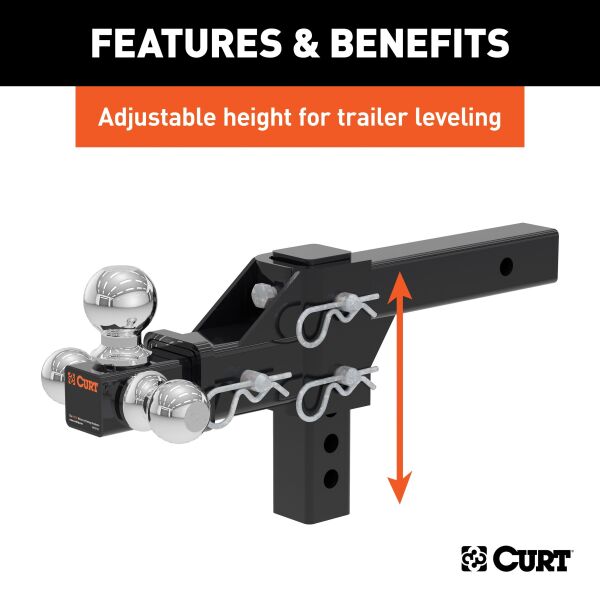

  • Adjustable height allows for precise trailer leveling

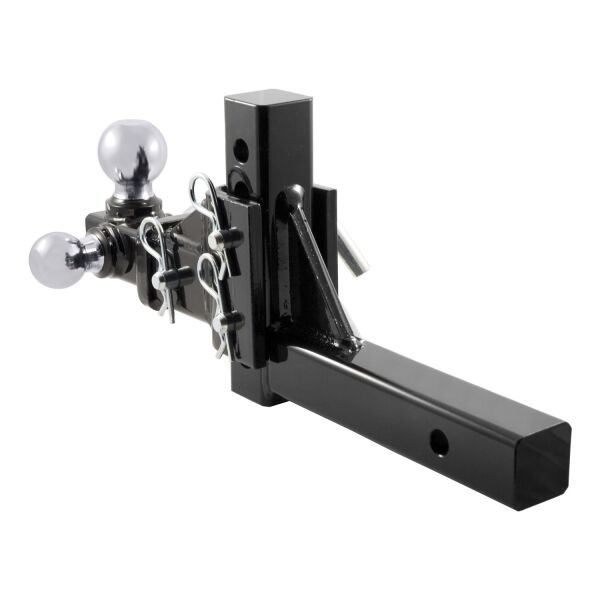

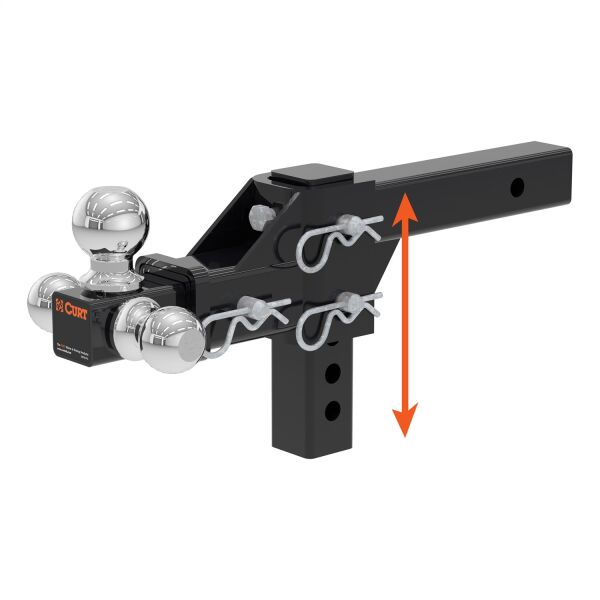

  • Shank can be flipped for a max drop or rise of 5-3/4"
  • Protected by a durable powder coat finish

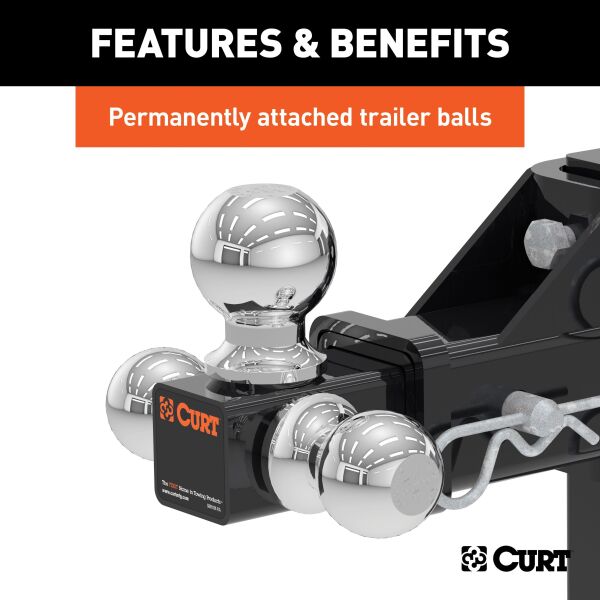

  • Permanently attached trailer balls cannot be loosened or stolen
  • Trailer balls feature a polished chrome-plated finish
  • 5/8" diameter pins & clips provide security and easy adjustment

  • Pallet Qty - XA 0.000
  • Finish Gloss Black Powder Coat
  • Style Adjustable
  • Style Adjustable
  • Overall Length 12.000 in.
  • Shank Length 16 IN
  • Drop 5.750 in.
  • WARNING CA Proposition 65 No
  • Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Side Application Type Description - XA Blank
  • Material - XA Blank
  • Sales Family Code - XA ACCES
  • Mount Type Description - XA Blank
  • Receiver Tube Size 2 IN
  • Receiver Tube Size 2 IN
  • Ball Diameter 1-7/8 IN or 2 IN or 2-5/16 IN
  • Rise 5.750 in.
  • Retail Height - XA 6.500
  • Rate Class - XA 50.0
  • Item Class - XA OBS
  • Shipping Weight - XA 45.410
  • Parcel Allowed - XA Yes
  • Item Width - XA 11.500
  • Retail Width - XA 11.500
  • Tariff 301 - XA No
  • Item Height - XA 8.000
  • Item Length - XA 14.500
  • Retail Length - XA 14.500
  • Box Width in Inches - XA
  • Box Width in Inches - XA 0
  • Tongue Weight (TW) 1,000 LB
  • Class ID 0
  • Box Length in Inches - XA
  • Box Length in Inches - XA 0
  • Product Weight - XA 45.410
  • Box Height in Inches - XA 0
  • Box Height in Inches - XA
  • Gross Trailer Weight (GTW) 10,000 LB
  • Sales Family Description - XA ACCESSORIES
  • Sales Group Description - XA BALL MOUNT
  • Max Drop 5-3/4 IN
  • GTW/TW Ball 2 7,500 LB / 750 LB
  • GTW/TW Ball 1 6,000 LB / 600 LB
  • GTW/TW Ball 3 10,000 LB / 1,000 LB
  • Ball 1 Diameter and Capacity 1-7/8 IN - 6,000 LB
  • Ball 2 Diameter and Capacity 2 IN - 7,500 LB
  • Ball 3 Diameter and Capacity 2-5/16 IN - 10,000 LB
  • Max Rise 5-3/4 IN
  • Master Case ITF14 0
  • Master Case ITF14 - XA 0
  • Master Case Length Inches - XA 14.750
  • Master Case Qty - XA 1
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 45.410
  • Master Case Width Inches - XA 11.375
  • Pallet Case Per - XA 48
  • Pallet Case Per Layer - XA 8
  • Pallet Cases Per - XA 48
  • Pallet Cases Per Layer - XA 8
  • Pallet Layer of Cases - XA 6
  • Pallet Total Height Inches - XA 38.071
  • Pallet Total Weight Per - XA 2216.000
  • Prop 65 Label Text - XA Blanks
  • Prop 65 Material - XA Unknown
  • Prop 65 Reason - XA Unknown
  • Prop 65 Warning Label Type - XA Unknown
  • Prop 65 Warning Y/N - XA NO
  • Truckload Cases Qty - XA 864
  • Truckload Pallets Qty - XA 18
  • Truckload Units Qty - XA 864
  • Truckload Volume Cubic Feet - XA 81.00000
  • Truckload Weight - XA 39953
  • Container Cases Qty - XA 816
  • Container Pallet Qty - XA 17
  • Container Unit Qty - XA 816
  • Container Volume Cubic Feet - XA 0.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 17124
  • Container Weight Lbs - XA 37672
  • Master Case Height Inches - XA 5.512
  • Master Case Inner Pack Qty - XA 0
  • Container Type - XA 40GP
  • Truckload Dom Pickup Location - XA Eau Claire, Wi
×
