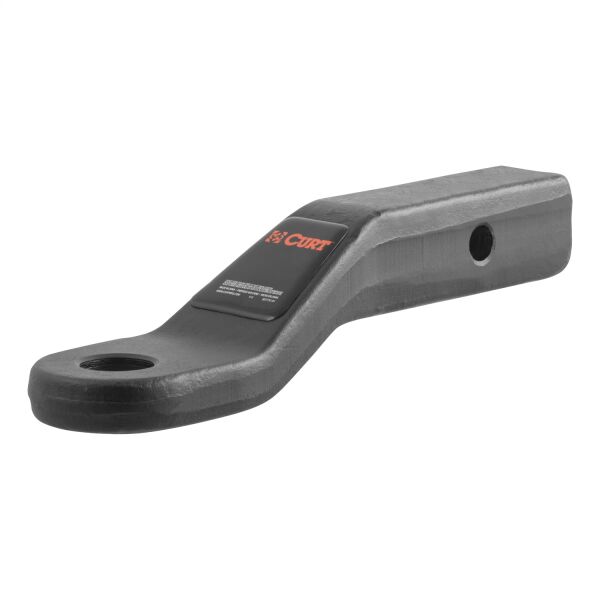

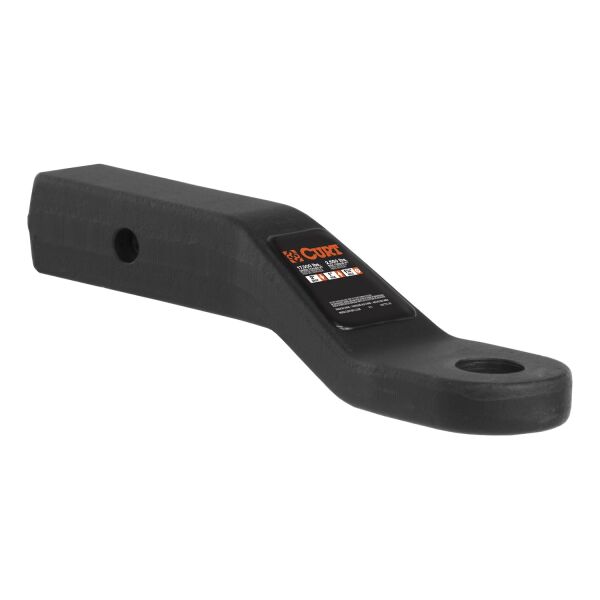

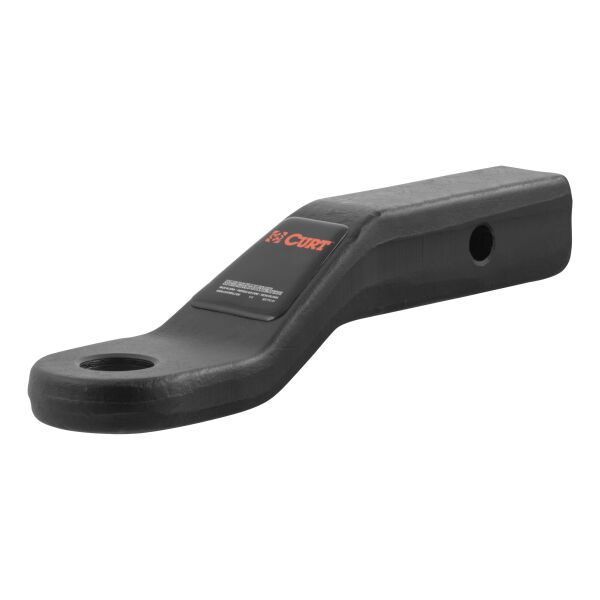

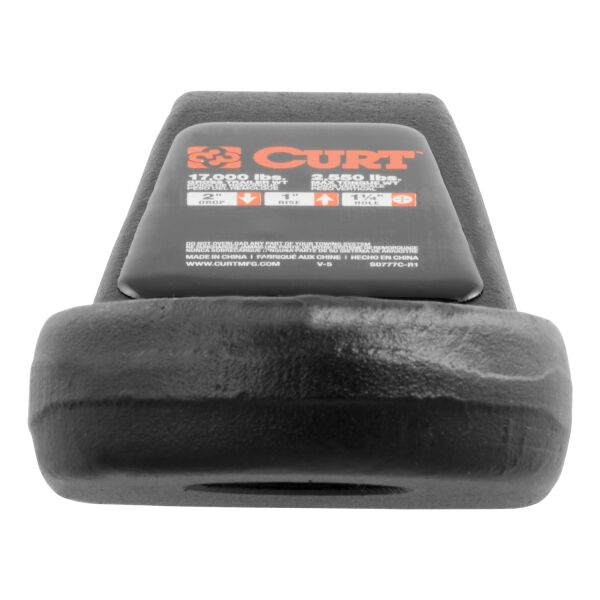

Forged Ball Mount (2" Shank, 17,000 lbs., 2" Drop, 8-1/2" Long) Trailer Hitch Ball Mount CURT #CUR45340

CURT 45340 Forged Trailer Hitch Ball Mount, Fits 2-Inch Receiver, 17,000 lbs, 1-1/4-Inch Hole, 2-In Drop, 1-Inch Rise

CURT, a Lippert brand, offers a complete line of towing products and is the leading manufacturer of USA-made custom-fit trailer hitches. We offer the broadest selection of custom-fit receiver hitches for nearly every vehicle on the road today.

  • Pushing the limits of standard towing, CURT forged ball mounts are a powerhouse among receiver-style ball mounts. With solid, one-piece construction, each forged ball mount is designed to surpass other 2" options to accommodate the added stress of heavy-duty towing. They are able to tow up to 17,000 lbs. of gross trailer weight and up to 2,550 lbs. of tongue weight, giving them more power to handle especially heavy loads. CURT forged ball mounts also come with a thick skin. We coat each ball mount in a black carbide powder coat finish to provide superior rust, scratch and UV protection. A forged ball mount is an excellent choice for hauling all kinds of heavy trailers. Whatever type of load you are towing -- livestock, industrial equipment, construction materials -- these class 5 ball mounts help you complete the job. Use a forged ball mount to tow large utility trailers, livestock and cattle trailers, toy haulers, RVs and large boat trailers (NOTE: Never exceed the lowest weight capacity of any towing component
  • i.e. the vehicle, hitch, trailer, etc). CURT forged ball mounts are engineered to be a perfect counterpart to the CURT class 5 Xtra-Duty trailer hitch, making them the ball mount of choice for full-size pickup trucks and SUVs.

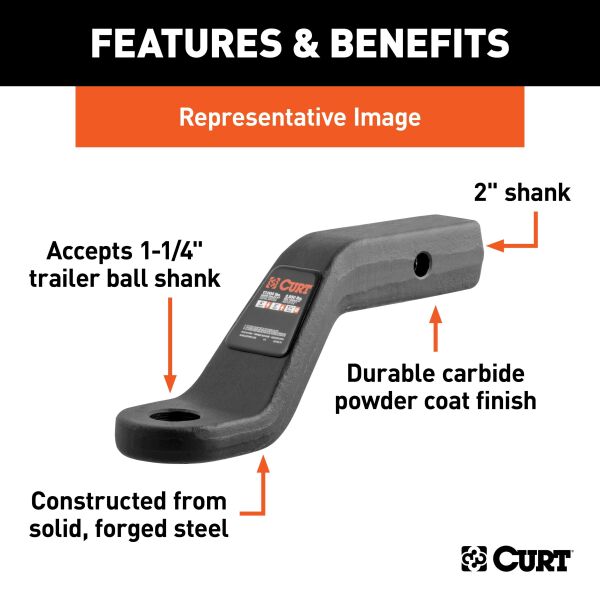

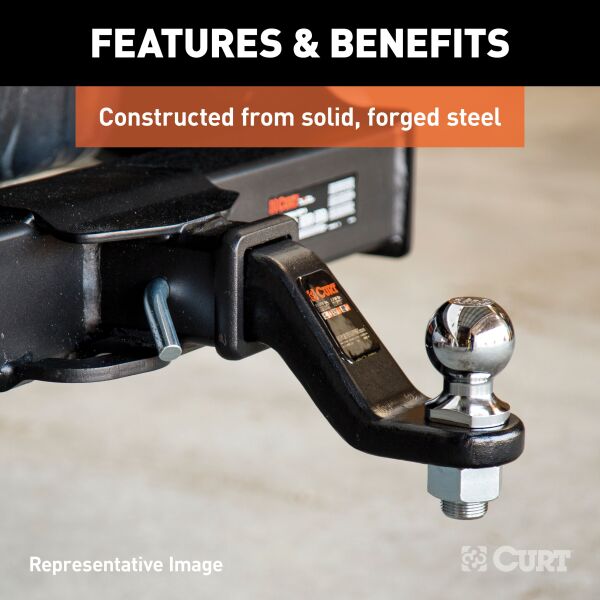

  • Constructed from solid, forged steel for superior strength

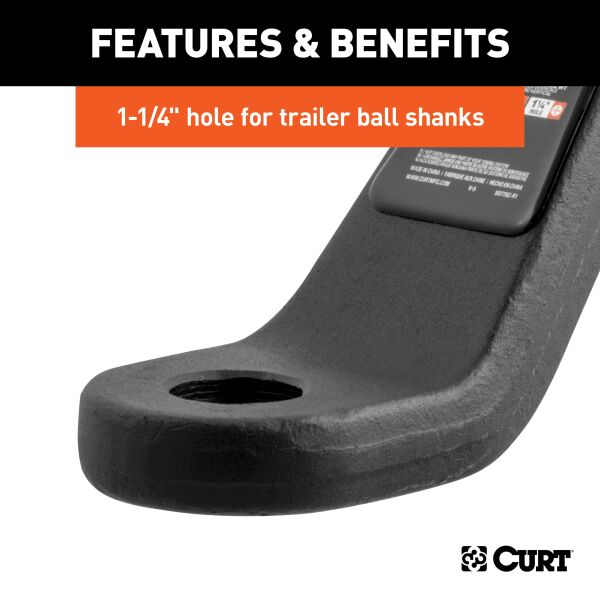

  • Equipped with a 1-1/4" hole to accept a trailer ball shank
  • 1" rise or 2" drop for precise trailer leveling
  • Protected by a highly durable carbide powder coat finish
  • Pallet Qty - XA 3.000
  • Finish Carbide Black Powder Coat
  • Style Fixed
  • Style Fixed
  • Overall Length 8.500 in.
  • Drop 2 IN
  • Drop 2 IN
  • WARNING CA Proposition 65 No
  • Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Side Application Type Description - XA Blank
  • Material - XA Blank
  • Sales Family Code - XA ACCES
  • Mount Type Description - XA Blank
  • Receiver Tube Size 2 IN
  • Receiver Tube Size 2 IN
  • WC Tongue Weight 2550
  • Gross Trailer Weight 17000 lbs.
  • Rise 1 IN
  • Rise 1 IN
  • Retail Height - XA 2.500
  • Rate Class - XA 50.0
  • Item Class - XA OBS
  • Shipping Weight - XA 11.200
  • Parcel Allowed - XA Yes
  • Item Width - XA 0.000
  • Retail Width - XA 3.000
  • Tariff 301 - XA No
  • Item Height - XA 0.000
  • Item Length - XA 0.000
  • Retail Length - XA 12.750
  • Box Width in Inches - XA 4
  • Tongue Weight (TW) 2,550 LB
  • Class ID 0
  • Box Length in Inches - XA 7
  • Product Weight - XA 11.200
  • Box Height in Inches - XA 2
  • Gross Trailer Weight (GTW) 17,000 LB
  • Sales Family Description - XA ACCESSORIES
  • Sales Group Description - XA BALL MOUNT
  • Master Case ITF14 20612314453409
  • Master Case ITF14 - XA 30612314453406
  • Master Case Length Inches - XA 13.386
  • Master Case Qty - XA 2
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 23.400
  • Master Case Width Inches - XA 9.449
  • Pallet Case Per - XA 78
  • Pallet Case Per Layer - XA 13
  • Pallet Cases Per - XA 78
  • Pallet Cases Per Layer - XA 13
  • Pallet Layer of Cases - XA 6
  • Pallet Total Height Inches - XA 26.260
  • Pallet Total Weight Per - XA 1869.200
  • Prop 65 Label Text - XA Blanks
  • Prop 65 Material - XA Unknown
  • Prop 65 Reason - XA Unknown
  • Prop 65 Warning Label Type - XA Unknown
  • Prop 65 Warning Y/N - XA NO
  • Truckload Cases Qty - XA 1248
  • Truckload Pallets Qty - XA 16
  • Truckload Units Qty - XA 2496
  • Truckload Volume Cubic Feet - XA 89.00000
  • Truckload Weight - XA 29907
  • Container Cases Qty - XA 1248
  • Container Pallet Qty - XA 16
  • Container Unit Qty - XA 2496
  • Container Volume Cubic Feet - XA 0.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 19948
  • Container Weight Lbs - XA 29907
  • Master Case Height Inches - XA 3.543
  • Master Case Inner Pack Qty - XA 0
  • Container Load Type - XA PALLETS
  • Container Type - XA 40GP
  • Truckload Dom Pickup Location - XA Eau Claire, Wi
×
