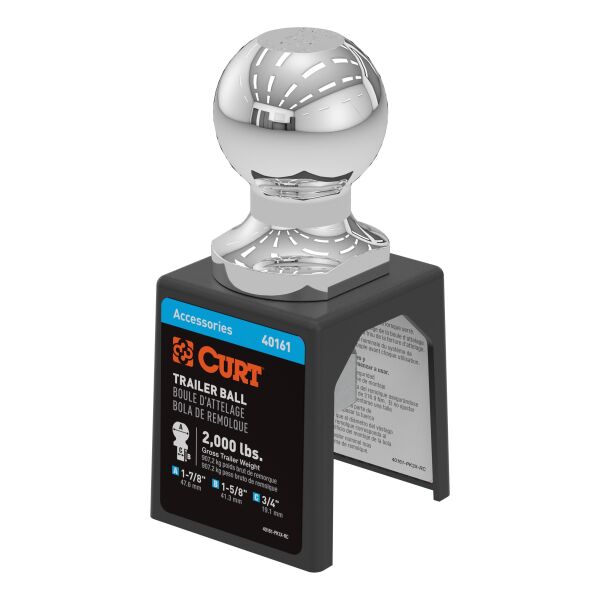

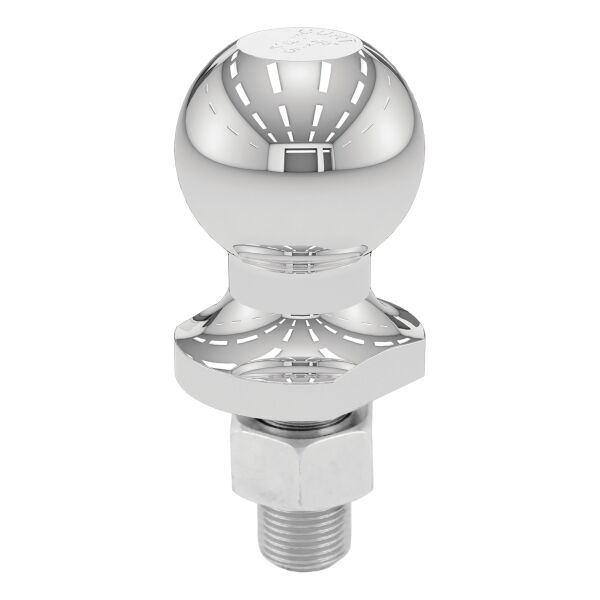

1-7/8" Trailer Ball (3/4" x 1-5/8" Shank, 2,000 lbs., Chrome, Packaged) Trailer Hitch Ball CURT #CUR40161

  • CURT 1-7/8" trailer balls are constructed from high-strength steel to match the towing power of your class 1 or class 2 trailer hitch and ball mount and come with fine threads on the shank for improved holding strength. Having a trailer ball that matches your coupler size is absolutely essential. At CURT, we engineer our trailer balls to be precisely fitted. When we stamp 1-7/8" into the top of each hitch ball, we actually mean 1-7/8".This CURT tow ball features a ball capacity of 2,000 lbs. It is able to tow most utility trailers, boat trailers, campers, smaller livestock trailers and some recreational vehicle haulers (NOTE: Never exceed the lowest weight capacity of any towing component
  • i.e. the vehicle, hitch, trailer, etc). As with any trailer, be sure that your towing equipment is capable of handling the load before hitching up. This trailer ball also features a 3/4" shank diameter, a 1-5/8" shank length, 0" of rise and a nickel-chrome finish to protect against corrosion and wear. Like all CURT trailer balls, our 1-7/8" balls are tested for your safety and meet all U.S. VESC specifications.
  • CURT 40161 Chrome Trailer Hitch Ball, 2,000 lbs, 1-7/8-Inch Diameter, 3/4 x 1-5/8-Inch Shank
  • Limited lifetime warranty (one-year finish, one-year parts)

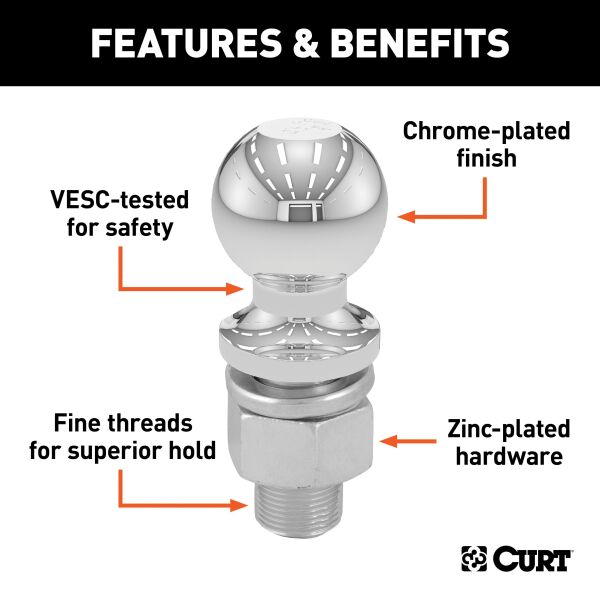

  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Tested for safety to meet U.S. VESC V-5 specifications
  • Fits 1-7/8" couplers and accepts up to 2,000 lbs. GTW
  • Constructed from high-strength, hot-forged steel
  • Overall Length 0.750 in.
  • Pallet Qty - XA 0.000
  • Finish CHROME-PLATED
  • Shank Length 0.750 in.
  • WARNING CA Proposition 65 No
  • Side Application Type Description - XA Blank
  • Finish - XA CHROME-PLATED
  • Material - XA FORGED STEEL
  • Sales Family Code - XA ACCES
  • Mount Type Description - XA Blank
  • Ball Diameter 1.875 in.
  • Gross Load 2000 lbs.
  • Retail Height - XA 2.400
  • Rate Class - XA 60.0
  • Rate Class - XA 60.0
  • Item Class - XA OBS
  • Shipping Weight - XA 1.810
  • Parcel Allowed - XA Yes
  • Item Width - XA 0.000
  • Retail Width - XA 2.400
  • Tariff 301 - XA Yes
  • Item Height - XA 0.000
  • Item Length - XA 0.000
  • Retail Length - XA 5.500
  • Box Width in Inches - XA 4
  • Box Length in Inches - XA 6
  • Product Weight - XA 1.810
  • Box Height in Inches - XA 3
  • Sales Family Description - XA ACCESSORIES
  • Sales Group Description - XA TRAILER BALLS
  • Ball Capacity 2,000 LBS
  • Master Case ITF14 60612314401613
  • Master Case ITF14 - XA 60612314401613
  • Master Case Length Inches - XA 11.800
  • Master Case Qty - XA 12
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 26.720
  • Master Case Width Inches - XA 8.260
  • Pallet Case Per - XA 144
  • Pallet Case Per Layer - XA 18
  • Pallet Cases Per - XA 144
  • Pallet Cases Per Layer - XA 18
  • Pallet Layer of Cases - XA 8
  • Pallet Total Height Inches - XA 60.000
  • Pallet Total Weight Per - XA 3869.680
  • Prop 65 Label Text - XA Blanks
  • Prop 65 Material - XA Unknown
  • Prop 65 Reason - XA Unknown
  • Prop 65 Warning Label Type - XA Unknown
  • Prop 65 Warning Y/N - XA NO
  • Truckload Cases Qty - XA 1440
  • Truckload Pallets Qty - XA 10
  • Truckload Units Qty - XA 17280
  • Truckload Volume Cubic Feet - XA 0.00000
  • Truckload Weight - XA 38696
  • Container Cases Qty - XA 1440
  • Container Pallet Qty - XA 10
  • Container Unit Qty - XA 17280
  • Container Volume Cubic Feet - XA 0.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 0
  • Container Weight Lbs - XA 38696
  • Master Case Height Inches - XA 7.000
  • Master Case Inner Pack Qty - XA 0
  • Container Load Type - XA PALLETS
  • Container Type - XA 20GP
×
