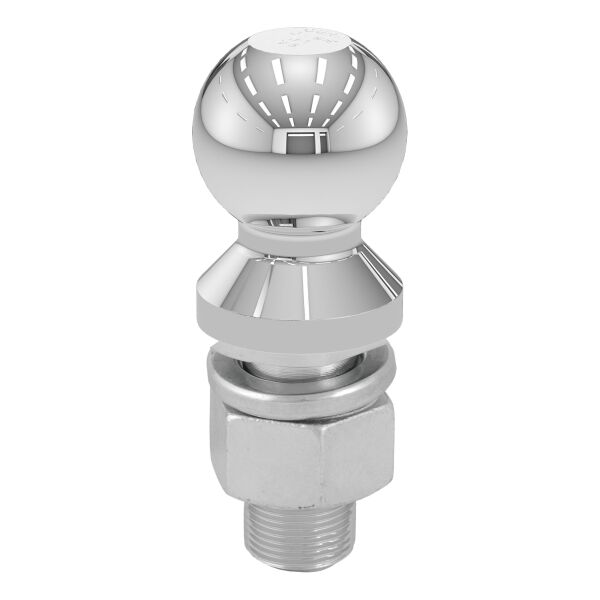

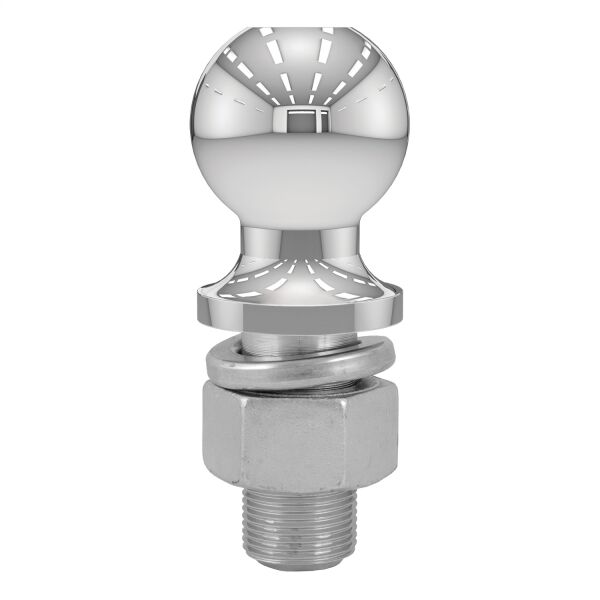

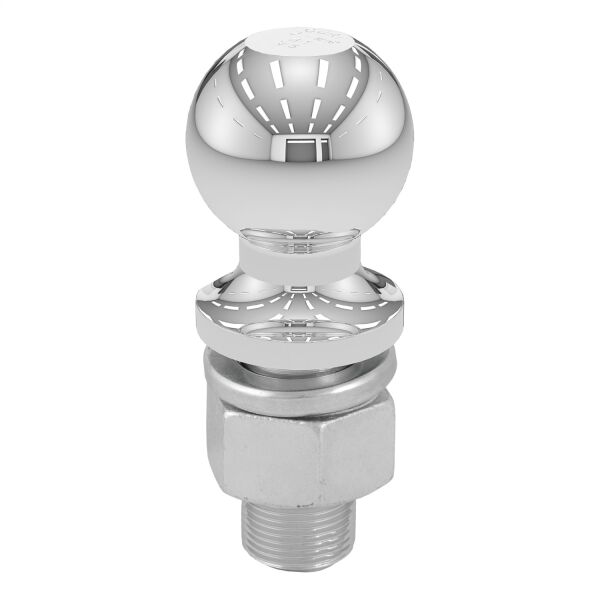

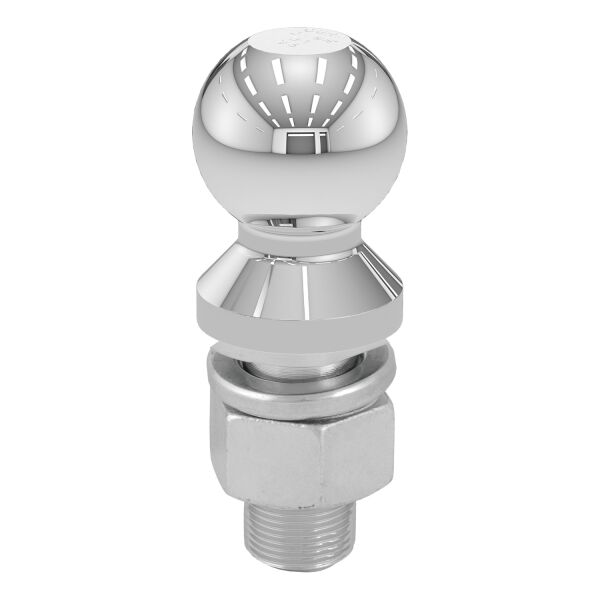

2-5/16" Trailer Ball (1-1/4" x 2-3/4" Shank, 20,000 lbs., Chrome) Trailer Hitch Ball CURT #CUR40009

  • The CURT 2-5/16" trailer ball does not mess around. Simply put, it is a solid piece of towing equipment that makes all others look like they're just spinning their wheels. CURT 2-5/16" trailer balls are made with expert engineering to be packed with strength and durable enough to withstand the harsh wear of heavy-duty towing. Anything your class 5 trailer hitch and class 5 ball mount can handle, CURT has a 2-5/16" trailer ball to match. These tow balls are perfect for towing all types of heavy receiver-style trailers, including dump trailers, toy haulers, farm trailers, chopper boxes, dual-axle utility trailers, deluxe RVs, small yachts and more (NOTE: Never exceed the lowest weight capacity of any towing component
  • i.e. the vehicle, hitch, trailer, etc).This 2-5/16" trailer ball features a ball capacity of 20,000 lbs. It features a 1-1/4" shank diameter, a 2-3/4" shank length and a nickel-chrome finish to protect against the elements. To give you the power you need to tow with confidence, CURT 2-5/16" trailer hitch balls are thoroughly tested for safety and meet U.S. VESC specifications.
  • CURT 40009 Chrome Trailer Hitch Ball, 20,000 lbs, 2-5/16-Inch Diameter, 1-1/4 x 2-3/4-Inch Shank

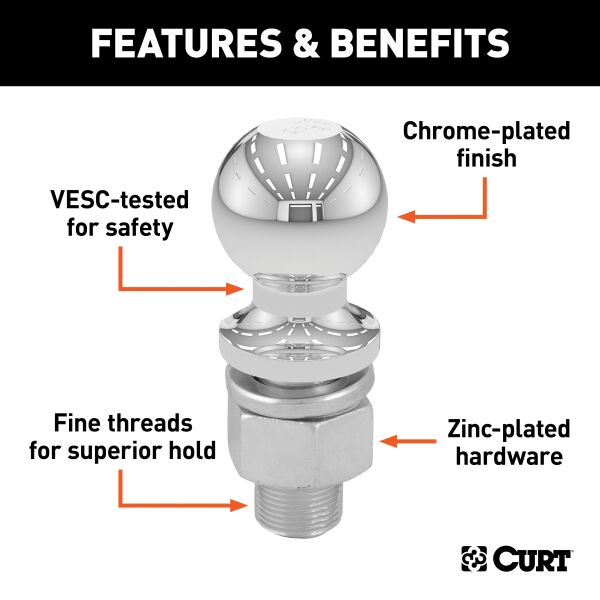

  • Tested for safety to meet U.S. VESC V-5 specifications
  • Constructed from high-strength, hot-forged steel
  • Protected by a durable chrome-plated finish
  • Zinc-plated hex nut and helical lock washer for secure mounting
  • Features fine threads for superior holding strength
  • Pallet Qty - XA 0.000
  • Color Silver
  • Color Silver
  • Finish Chrome Plated
  • Shank Length 2 3/4 IN
  • Shank Length 2 3/4 IN
  • Shank Diameter 1.25
  • WARNING CA Proposition 65 No
  • Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Side Application Type Description - XA Blank
  • Finish - XA CHROME-PLATED
  • Material - XA FORGED STEEL
  • Sales Family Code - XA ACCES
  • Mount Type Description - XA Blank
  • Ball Diameter 2-5/16 IN
  • Ball Diameter 2-5/16 IN
  • Ball Shank Diameter N/A
  • Gross Load 2000 lbs.
  • Torque Capacity 450 ft/lbs.
  • Retail Height - XA 3.000
  • Rate Class - XA 60.0
  • Rate Class - XA 60.0
  • Item Class - XA OBS
  • Shipping Weight - XA 4.200
  • Parcel Allowed - XA Yes
  • Item Width - XA 0.000
  • Retail Width - XA 3.000
  • Tariff 301 - XA Yes
  • Item Height - XA 0.000
  • Item Length - XA 0.000
  • Retail Length - XA 7.250
  • Box Width in Inches - XA 5
  • Box Length in Inches - XA 8
  • Product Weight - XA 4.200
  • Box Height in Inches - XA 4
  • Sales Family Description - XA ACCESSORIES
  • Sales Group Description - XA TRAILER BALLS
  • Ball Capacity 20,000 LBS
  • Shank Rise 0 IN
  • Torque 450 FT LB
  • Master Case ITF14 60612314400098
  • Master Case ITF14 - XA 60612314400098
  • Master Case Length Inches - XA 15.700
  • Master Case Qty - XA 12
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 55.400
  • Master Case Width Inches - XA 9.800
  • Pallet Case Per - XA 40
  • Pallet Case Per Layer - XA 10
  • Pallet Cases Per - XA 40
  • Pallet Cases Per Layer - XA 10
  • Pallet Layer of Cases - XA 4
  • Pallet Total Height Inches - XA 38.000
  • Pallet Total Weight Per - XA 2236.000
  • Prop 65 Label Text - XA Blanks
  • Prop 65 Material - XA Unknown
  • Prop 65 Reason - XA Unknown
  • Prop 65 Warning Label Type - XA Unknown
  • Prop 65 Warning Y/N - XA NO
  • Truckload Cases Qty - XA 760
  • Truckload Pallets Qty - XA 19
  • Truckload Units Qty - XA 9120
  • Truckload Volume Cubic Feet - XA 0.00000
  • Truckload Weight - XA 42484
  • Container Cases Qty - XA 760
  • Container Pallet Qty - XA 19
  • Container Unit Qty - XA 9120
  • Container Volume Cubic Feet - XA 805.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 0
  • Container Weight Lbs - XA 42484
  • Master Case Height Inches - XA 8.100
  • Master Case Inner Pack Qty - XA 0
  • Container Load Type - XA PALLETS
  • Container Type - XA 20GP
×
