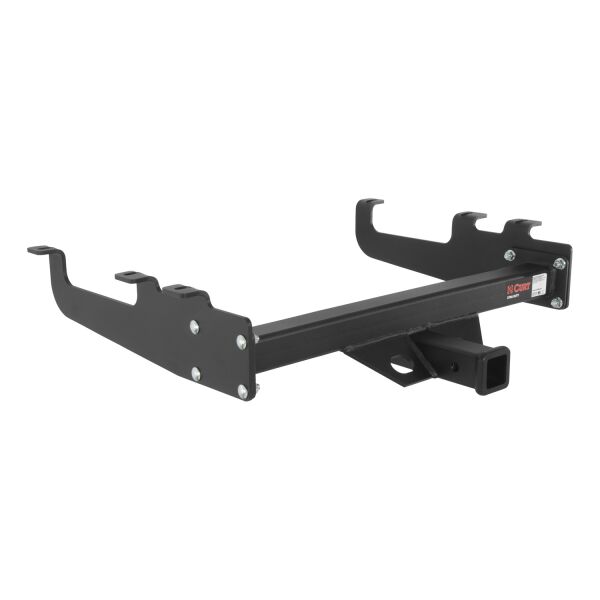

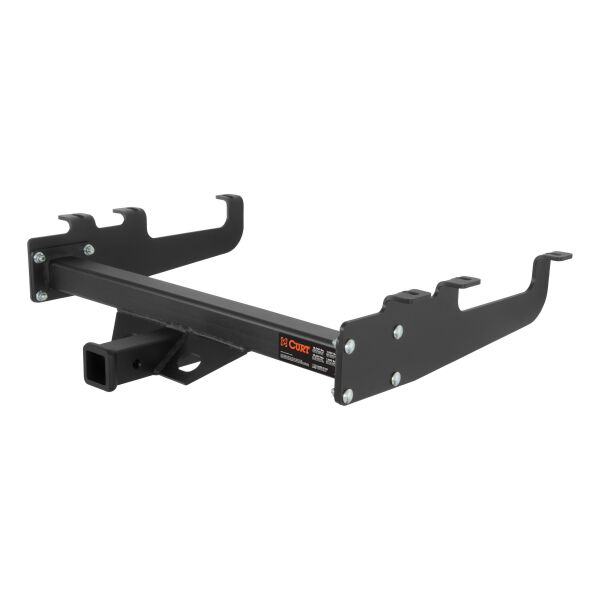

Class 5 Multi-Fit Trailer Hitch with 2" Receiver Trailer Hitch CURT #CUR15510

When a custom hitch is not available for your vehicle, CURT offers the multi-fit hitch. Designed to be the ultimate in versatility, CURT universal trailer hitches fit several different vehicle manufacturers, including Chevy, GMC, Dodge, Ford and more. The multi-fit hitch is a universally designed alternative to our custom hitches. It provides a more affordable option and flexibility in installation. Very simply, a CURT multi-fit trailer hitch uses a sliding or adjustable frame to match the width of your vehicle's frame. In general, multi-fit hitches are used on mid-size and full-size pickup trucks and class 5 multi-fit trailer hitch features a gross trailer weight capacity of 15,000 lbs., a tongue weight capacity of 1,500 lbs. and a 2" x 2" receiver tube opening, making it an excellent choice for towing toy haulers, dump trailers, logging trailers, gravity boxes, small yacht trailers, as well as cargo carriers, bike racks and winch mounts. For a little extra towing power and stability, this multi-fit hitch can also be used in combination with a weight distribution system, bringing its gross trailer weight capacity up to 16,000 lbs. and its tongue weight capacity up to 1,600 lbs. (NOTE: Never exceed the lowest weight capacity of any towing component).

CURT 15510 Multi-Fit Class 5 Adjustable Hitch, 5-1/2-Inch Drop, 2-Inch Receiver, 15,000 lbs. Select Chevrolet, Dodge, Ford, GMC Trucks

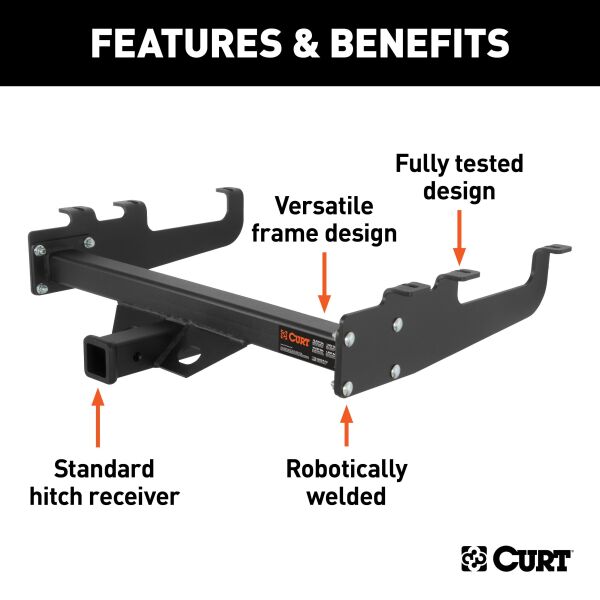

  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Protected by a highly durable carbide powder coat finish

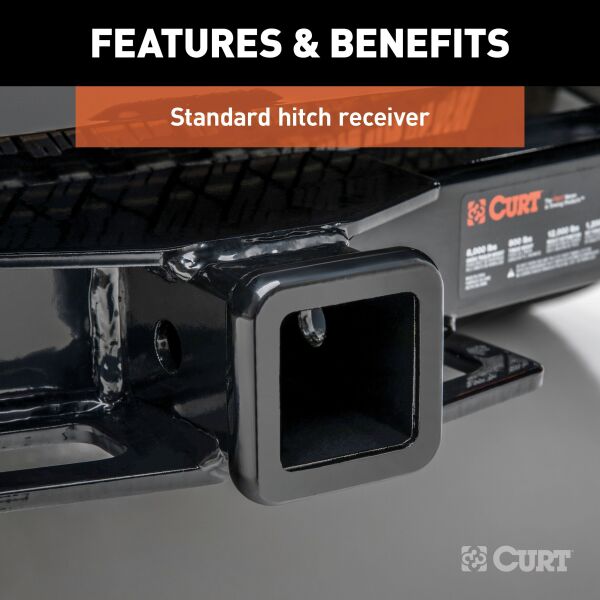

  • Equipped with an open-back receiver for easy cleaning

  • Color Black
  • Ball Mount Included No
  • Pallet Qty - XA 13.000
  • Receiver Included Yes
  • Weight Distribution Compatible Yes
  • Weight Distribution Tongue Weight 1,600
  • Position Rear
  • Position Rear
  • Finish Carbide Black Powder Coat
  • Material Carbon Steel
  • Material Carbon Steel

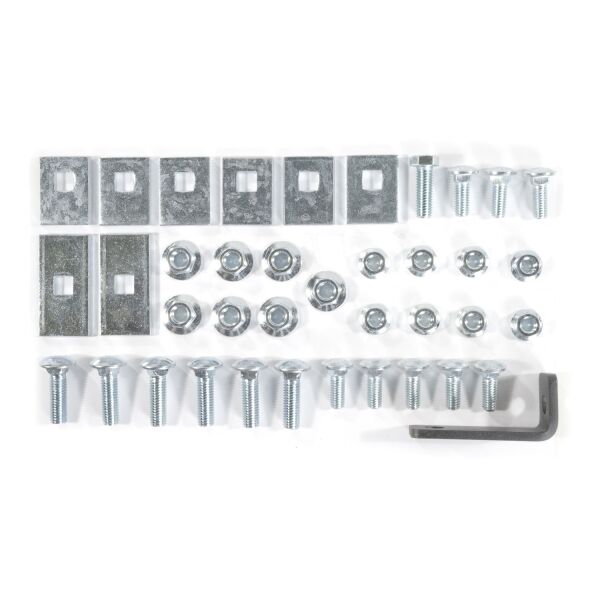

  • Mounting Hardware Included Yes
  • Drilling Required No
  • Drop 5 1/2 IN
  • Receiver Size 2
  • WARNING CA Proposition 65 No
  • Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Side Application Type Description - XA Blank
  • Material - XA Carbon Steel
  • Sales Family Code - XA HITCH
  • Mount Type Description - XA Blank
  • Body Shape Square
  • Receiver Tube Size 2.000 in.
  • Receiver Tube Size 2.000 in.
  • Receiver Tube Size 2 IN
  • Receiver Tube Size 2 IN
  • Receiver Tube Size 2
  • Receiver Tube Size 2
  • Visibility Concealed
  • WC Tongue Weight 1500
  • WD Tongue Weight 1600
  • Weight Distribution 16000
  • Gross Trailer Weight 15000 lbs.
  • Retail Height - XA 8.000
  • Rate Class - XA 70.0
  • Rate Class - XA 70.0
  • Item Class - XA MFH
  • Shipping Weight - XA 62.000
  • Parcel Allowed - XA Yes
  • Item Width - XA 11.970
  • Item Width - XA 11.970
  • Retail Width - XA 15.000
  • Tariff 301 - XA No
  • Item Height - XA 6.370
  • Item Height - XA 6.370
  • Item Length - XA 33.000
  • Item Length - XA 33.000
  • Retail Length - XA 44.000
  • Weight Carrying Capacity (WC) 15,000 LB
  • Box Width in Inches - XA 7
  • Tongue Weight (TW) 1,500 LB
  • Class ID 0
  • Box Length in Inches - XA 43
  • Product Weight - XA 58.000
  • Main Body Shape Square
  • Box Height in Inches - XA 13
  • Weight Distribution Tongue Weight (WDTW) 1,600 LB
  • Weight Distribution (WD) 16,000 LB
  • Gross Trailer Weight (GTW) 15,000 LB
  • Sales Family Description - XA HITCH
  • Sales Group Description - XA CL 5
  • Master Case ITF14 0
  • Master Case ITF14 - XA 0
  • Master Case Length Inches - XA 0.000
  • Master Case Qty - XA 0
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 0.000
  • Master Case Width Inches - XA 0.000
  • Pallet Case Per - XA 0
  • Pallet Case Per Layer - XA 0
  • Pallet Cases Per - XA 0
  • Pallet Cases Per Layer - XA 0
  • Pallet Layer of Cases - XA 0
  • Pallet Total Height Inches - XA 0.000
  • Pallet Total Weight Per - XA 0.000
  • Prop 65 Label Text - XA Blanks
  • Prop 65 Material - XA Unknown
  • Prop 65 Reason - XA Unknown
  • Prop 65 Warning Label Type - XA Unknown
  • Prop 65 Warning Y/N - XA NO
  • Truckload Cases Qty - XA 0
  • Truckload Pallets Qty - XA 0
  • Truckload Units Qty - XA 0
  • Truckload Volume Cubic Feet - XA 0.00000
  • Truckload Weight - XA 0
  • Container Cases Qty - XA 0
  • Container Pallet Qty - XA 0
  • Container Unit Qty - XA 0
  • Container Volume Cubic Feet - XA 0.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 0
  • Container Weight Lbs - XA 0
  • Master Case Height Inches - XA 0.000
  • Master Case Inner Pack Qty - XA 0
  • Price Code - XA 69
  • Hitch Class V
×
