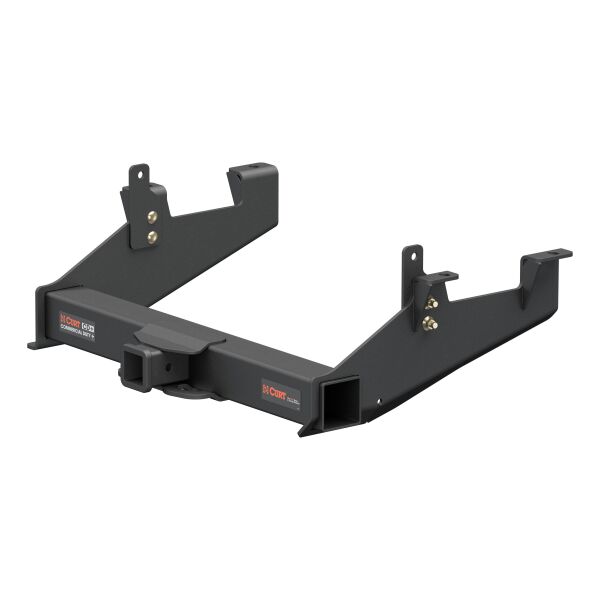

Commercial Duty Class 5 Hitch, 2-1/2", Select Silverado, Sierra HD Trailer Hitch CURT #CUR15010

CURT 15010 Commercial Duty Class 5 Trailer Hitch, 2-1/2-Inch Receiver, Compatible with Select Chevrolet Silverado, GMC Sierra 2500, 3500 HD

  • In the world of commercial towing, more is expected. A job cannot be completed if the equipment cannot handle the workload. That is why CURT developed the Commercial Duty class 5 trailer hitch. Constructed from steel and engineered for power, these class 5 hitches are designed to complement the towing power of full-size, commercial pickup trucks, including diesels and chassis cabs. They can easily handle a variety of oversize trailers, including toy and car haulers, livestock trailers, dumper trailers, large flatbed trailers, large boat trailers and more (NOTE: Never exceed the lowest weight capacity of any towing component). This particular class 5 hitch features a gross trailer weight capacity of 20,000 lbs. and a tongue weight capacity of 2,700 lbs. It is designed to be a custom trailer hitch for certain years of the Chevrolet Silverado and GMC Sierra 2500 HD and 3500 HD (will not fit with factory receiver

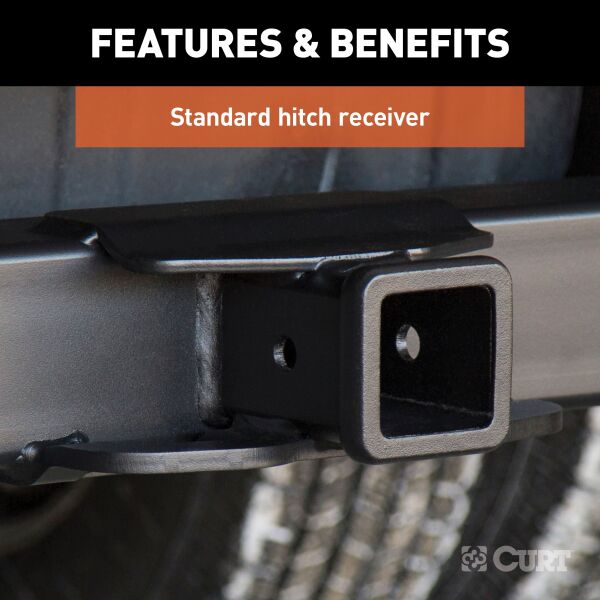

  • to verify your vehicle compatibility, see application info). All CURT Commercial Duty class 5 hitches feature a 2-1/2" x 2-1/2" receiver tube opening to accept the strongest of ball mounts and towing accessories. They are perfect for mounting standard ball mounts, pintle mounts, tow hooks and weight distribution hitches as well as winch mounts and cargo carriers. CURT class 5 tow hitches are protected by a co-curing of liquid A-coat and carbide black powder coat finish. They also mount with grade-8 hardware, included with each hitch.
  • Rated to 20,000 lbs. gross trailer weight and 2,700 lbs. tongue weight
  • Made in USA (may include imported hardware)
  • Compatible with weight distribution hitch (20,000 lbs. WD / 2,700 lbs. WDTW)

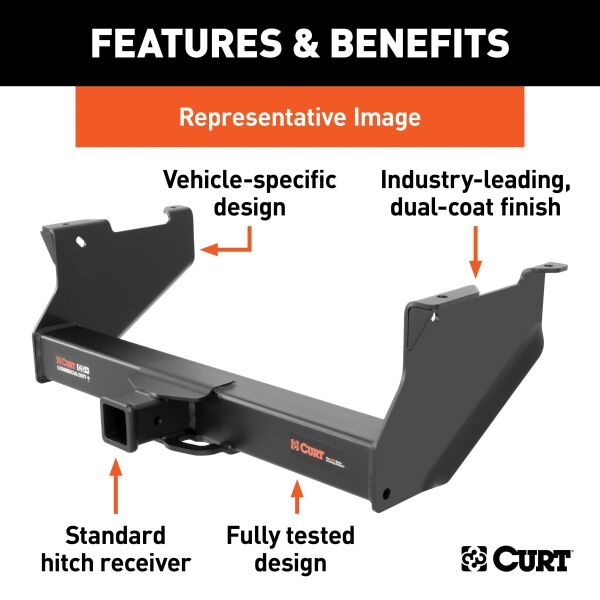

  • Engineered with a vehicle-specific design for a custom fit

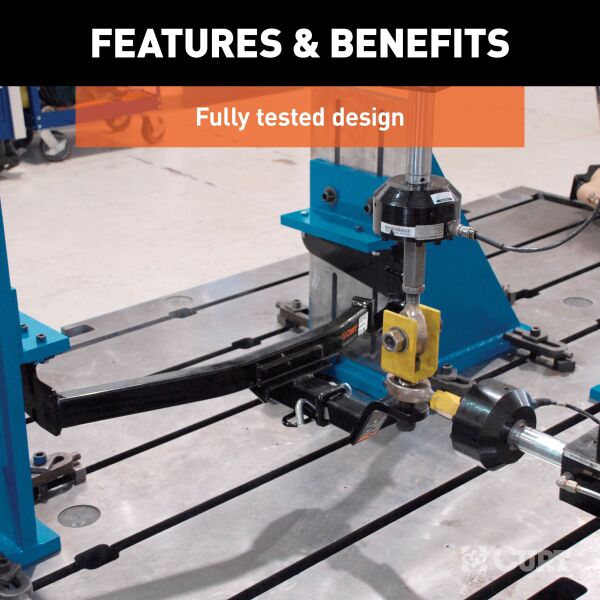

  • Tested for safety in accordance with SAE J684
  • Precisely welded for superior strength and fit
  • Constructed with a large, powerful main body
  • Protected by a highly durable carbide powder coat finish

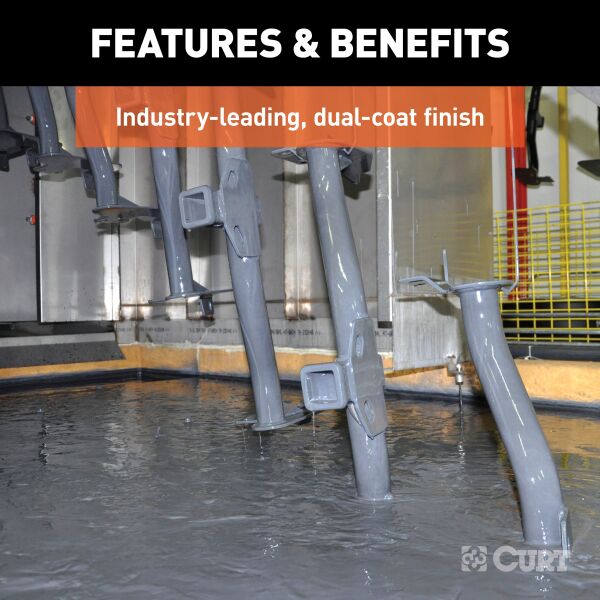

  • Co-cured in a rust-resistant liquid A-coat, inside and out
  • Features wide safety chain openings for heavy-duty hooks
  • Equipped with an open-back receiver for easy cleaning
  • Trailer hitch weight ratings are limited to vehicle manufacturer's stated capacities
  • Includes strong, grade-8 installation hardware
  • Will not fit with factory receiver

  • Color Black
  • Pallet Qty - XA 8.000
  • Receiver Included No
  • Receiver Size 2 1/2
  • Position Rear
  • Position Rear
  • Finish Powder Coated
  • Material STEEL
  • Material STEEL
  • Mounting Hardware Included Yes
  • Drilling Required No
  • WARNING CA Proposition 65 No
  • Warranty Limited Lifetime Warranty (One-Year Finish, One-Year Parts)
  • Side Application Type Description - XA Not Applicable
  • Finish - XA CARBIDE BLACK POWDER COAT
  • Material - XA Carbon Steel
  • Sales Family Code - XA HITCH
  • Mount Type Description - XA Not Applicable
  • Receiver Tube Size 2.500 in.
  • Receiver Tube Size 2-1/2 IN
  • WC Tongue Weight 2700
  • Weight Carrying Capacity 20000
  • Weight Distribution 20000
  • Gross Trailer Weight 20000 lbs.
  • Retail Height - XA 29.000
  • Rate Class - XA 92.5
  • Rate Class - XA 92.5
  • Item Class - XA MFH
  • Shipping Weight - XA 72.000
  • Parcel Allowed - XA No
  • Item Width - XA 29.450
  • Retail Width - XA 34.000
  • Tariff 301 - XA No
  • Item Height - XA 12.180
  • Item Length - XA 40.690
  • Retail Length - XA 47.000
  • Weight Carrying Capacity (WC) 20,000 LB
  • Box Width in Inches - XA 14
  • Tongue Weight (TW) 2,700 LB
  • Class ID 10
  • Box Length in Inches - XA 48
  • Product Weight - XA 83.000
  • Main Body Shape Square
  • Box Height in Inches - XA 33
  • Weight Distribution Tongue Weight (WDTW) 2,700 LB
  • Weight Distribution (WD) 20,000 LB
  • Sales Family Description - XA HITCH
  • Sales Group Description - XA CL 5
  • Master Case ITF14 0
  • Master Case ITF14 - XA 0
  • Master Case Length Inches - XA 0.000
  • Master Case Qty - XA 0
  • Master Case Volume Cubic Feet - XA 0.00000
  • Master Case Weight Lbs - XA 0.000
  • Master Case Width Inches - XA 0.000
  • Pallet Case Per - XA 0
  • Pallet Case Per Layer - XA 0
  • Pallet Cases Per - XA 0
  • Pallet Cases Per Layer - XA 0
  • Pallet Layer of Cases - XA 0
  • Pallet Total Height Inches - XA 0.000
  • Pallet Total Weight Per - XA 0.000
  • Prop 65 Label Text - XA Blanks
  • Prop 65 Material - XA Unknown
  • Prop 65 Reason - XA Unknown
  • Prop 65 Warning Label Type - XA Unknown
  • Prop 65 Warning Y/N - XA NO
  • Truckload Cases Qty - XA 0
  • Truckload Pallets Qty - XA 0
  • Truckload Units Qty - XA 0
  • Truckload Volume Cubic Feet - XA 0.00000
  • Truckload Weight - XA 0
  • Container Cases Qty - XA 0
  • Container Pallet Qty - XA 0
  • Container Unit Qty - XA 0
  • Container Volume Cubic Feet - XA 0.00000
  • Container Volume Cubic Meter - XA 0.00000
  • Container Weight KG - XA 0
  • Container Weight Lbs - XA 0
  • Master Case Height Inches - XA 0.000
  • Master Case Inner Pack Qty - XA 0
  • Price Code - XA 97
  • Hitch Class V
  • Attachment Location Rear
×
