B8 8112 (ZoneControl CR) - Front Right Corner Module Suspension Shock Absorber and Coil Spring Assembly Bilstein #BIL41-298374

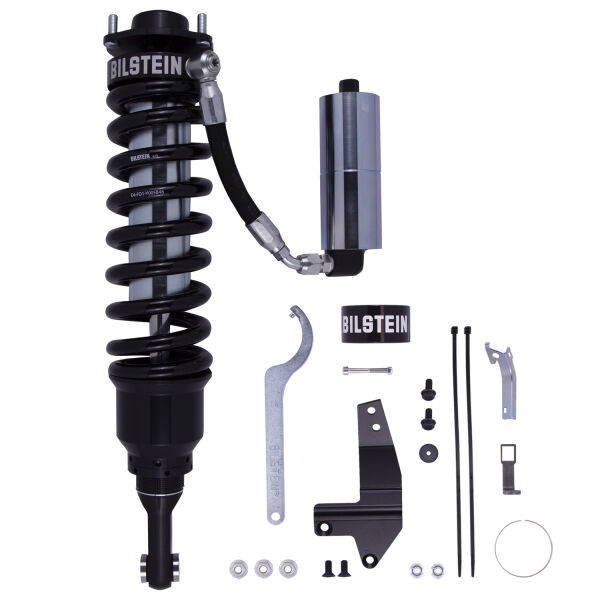

Bilstein B8 8112 (ZoneControl CR) is a direct fit, 2.65-in body position sensitive coilover shock designed for light trucks and SUV’s. ZoneControl CR is a revolutionary technology delivering position sensitive damping. The system incorporates a triple piston design, offering 3 stages of compression valving and 2 stages of rebound valving. The coilover module utilizes a threaded spring seat for ride height adjustability ranging from 0-3.8” (depending on application). The coilover is supplied with a remote reservoir for increased cooling and an accompanied, bolt-on anodized reservoir chassis mount. BILSTEIN B8 8112 (ZoneControl) CR position sensitive coilovers will offer unparalleled ride comfort during every day driving combined with maximum control over large suspension inputs.

The BILSTEIN Clubsport® suspension system is a fully street-legal, TÜV-certified high-end coilover package that is also designed for uncompromising use in the fields of racing and clubsport. This kit combines the tried-and-tested BILSTEIN mono-tube gas pressure technology with the highest levels of engineering from the field of motor sport. -2 way damping force adjuster for independent adjustment of rebound and compression forces -Aluminum adjustment wheels with clearly identified tuning settings from 1 (soft) to 10 (hard) -Color-coding: red for rebound force, blue for compression force -Manually adjustable without additional tools -Each definite click of the wheel confirms the simple and quick damping force adjustment -Wheel camber is adjustable by aluminum support bearing -Weight advantage by eliminating the need for an external oil reservoir -BILSTEIN-monotube technology developed through years of motorsport involvement -Spring plates and lock nuts made from special aluminium alloy -Quality built racing springs -Roadworthy: TÜV certificate according to Section 19 of the German Road Traffic -Licensing Regulations (StVZO) -Extremely easy to install and simple to use -Can be retrofitted for racing in cooperation with •BILSTEIN-Motorsport on request -Surface coating using Triple-C-Technology® for long-lasting corrosion resistance Brochure (Clubsport): -100 Damping variations that can be experienced and manually selected with tangible differences -Adjustment knobs with clearly visable and distinct scaling, from 1 (soft) to 10 (firm) -Clear click resolution and color coding -Simple setup changes are possible while installed without the need for additional tools -Includes uniball camber plates and shock mounts -Weight and installation space advantages thanks to integrated reservoir -Quality racing springs made from highly durable material -All Spring plates and lock nuts are made from special aluminum alloy -Aluminum uniball camber plates and shock mounts

• 60mm Front Right Corner Module
• Front Lift Height: 1.2-3.5"
• For 150-200 lbs additional front weight
• With Kinetic Dynamic Suspension System (KDSS)
