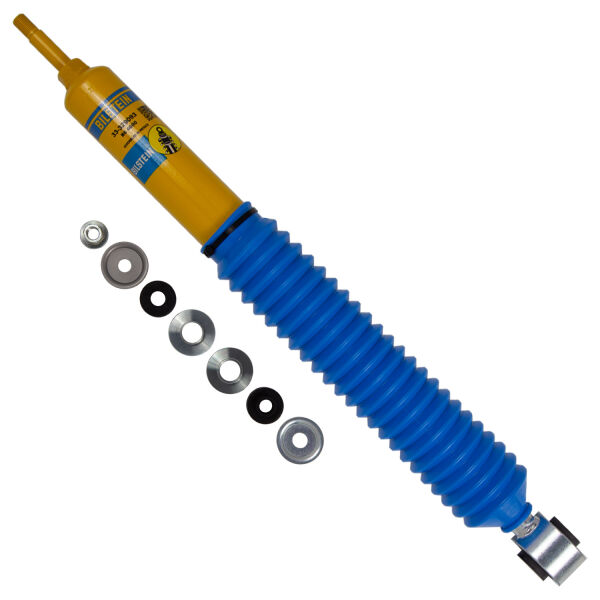

B6 4600 - Suspension Shock Absorber Suspension Shock Absorber Bilstein #BIL33-329093

Bilstein B6 4600 shock absorbers are designed as a direct fit upgrade to OE shock absorbers on stock height light trucks and SUV’s. These shock absorbers feature a monotube design which provides consistent fade free performance. B6 4600 shock absorbers utilize a unique, velocity sensitive, digressive piston which reacts to changing road conditions. All B6 4600 shock absorbers are tuned for each specific application to ensure optimal performance is achieved. B6 4600 shock absorbers offer a significant improvement in ride quality, handling, and comfort.

The BILSTEIN Clubsport® suspension system is a fully street-legal, TÜV-certified high-end coilover package that is also designed for uncompromising use in the fields of racing and clubsport. This kit combines the tried-and-tested BILSTEIN mono-tube gas pressure technology with the highest levels of engineering from the field of motor sport. -2 way damping force adjuster for independent adjustment of rebound and compression forces -Aluminum adjustment wheels with clearly identified tuning settings from 1 (soft) to 10 (hard) -Color-coding: red for rebound force, blue for compression force -Manually adjustable without additional tools -Each definite click of the wheel confirms the simple and quick damping force adjustment -Wheel camber is adjustable by aluminum support bearing -Weight advantage by eliminating the need for an external oil reservoir -BILSTEIN-monotube technology developed through years of motorsport involvement -Spring plates and lock nuts made from special aluminium alloy -Quality built racing springs -Roadworthy: TÜV certificate according to Section 19 of the German Road Traffic -Licensing Regulations (StVZO) -Extremely easy to install and simple to use -Can be retrofitted for racing in cooperation with •BILSTEIN-Motorsport on request -Surface coating using Triple-C-Technology® for long-lasting corrosion resistance Brochure (Clubsport): -100 Damping variations that can be experienced and manually selected with tangible differences -Adjustment knobs with clearly visable and distinct scaling, from 1 (soft) to 10 (firm) -Clear click resolution and color coding -Simple setup changes are possible while installed without the need for additional tools -Includes uniball camber plates and shock mounts -Weight and installation space advantages thanks to integrated reservoir -Quality racing springs made from highly durable material -All Spring plates and lock nuts are made from special aluminum alloy -Aluminum uniball camber plates and shock mounts

  • 46mm Monotube Shock Absorber
  • Without X-REAS Suspension

  • Segment Light Truck
  • PartType Shocks / Struts
  • Prop65 Y
  • Prop 65 (Y/N) Y
  • Prop 65 Y/N Y
  • Compressed Length 378.3
  • Compressed Length 14.89
  • Adjustable Rebound No
  • Shaft Diameter 14mm
  • Active or Passive Suspension Passive
  • Extended Length 575.0
  • Adjustable Ride Height No
  • Piston Diameter 46mm
  • Adjustable Compression No
  • Extended Length 22.64
  • Stroke/Travel Length (mm) 193.8
  • Lower Mount Type Loop (Eyelet) Bushing
  • Stroke/Travel Length (IN) 7.63
  • Travel Length 7.63
  • Title Bilstein Shock Absorbers
  • Position Rear
  • Position Rear
  • Finish Yellow Paint

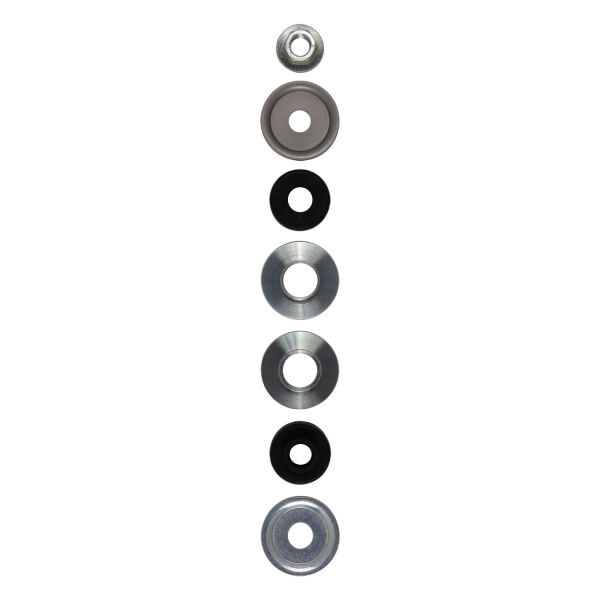

  • Mounting Hardware Included Yes
  • Series B6 4600
  • Upper Mount Type Stem
  • California Proposition 65 WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
  • Grade Type Performance
  • Boot Included Blue Bellows
  • Spring Seat Included No
  • Internal Design Monotube
  • Adjustable Damping Non-Adjustable
  • Reservoir No
  • Body Design Smooth Body (Non-Coilover)
  • Extended Length (IN) 22.64
  • Collapsed Length (IN) 14.89
  • Collapsed Length (MM) 378.3
  • Extended Length (MM) 575.0
  • Body Diameter (ID) 46mm
×
