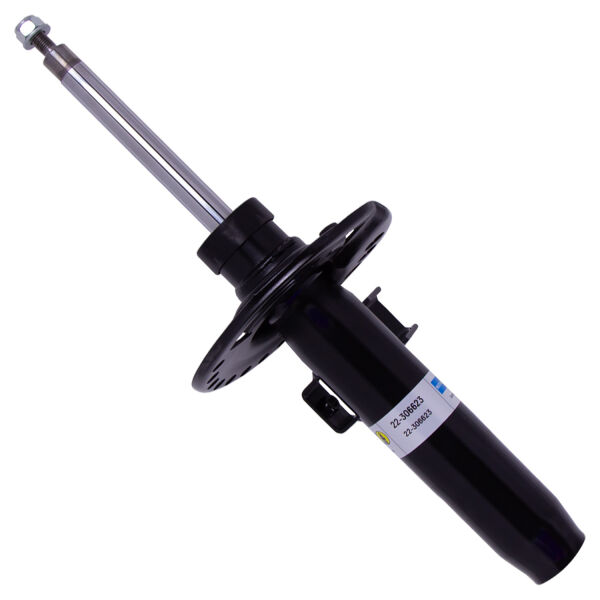

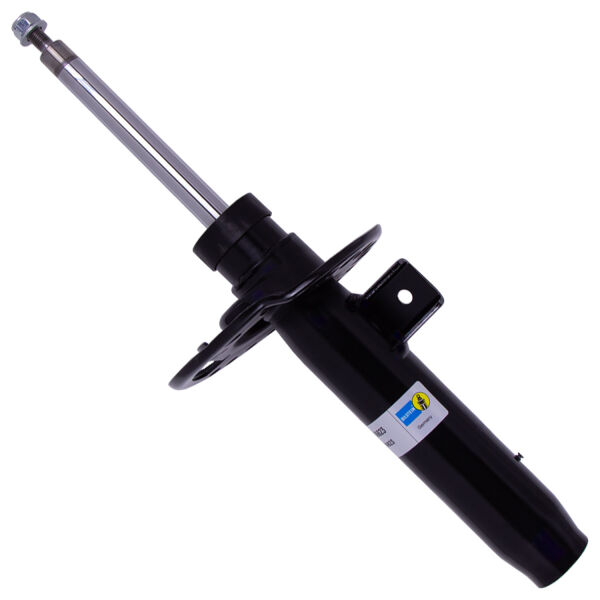

B4 OE Replacement - Suspension Strut Assembly Suspension Strut Assembly Bilstein #BIL22-306623

Bilstein B4 OE Replacement dampers are specifically engineered to be the best choice for maintaining the original ride quality of your vehicle, while meeting or exceeding OE standards. These dampers are the ideal choice for the driver looking to restore the original performance and handling of their vehicle, with the added benefit of world-famous Bilstein quality.

The BILSTEIN Clubsport® suspension system is a fully street-legal, TÜV-certified high-end coilover package that is also designed for uncompromising use in the fields of racing and clubsport. This kit combines the tried-and-tested BILSTEIN mono-tube gas pressure technology with the highest levels of engineering from the field of motor sport. -2 way damping force adjuster for independent adjustment of rebound and compression forces -Aluminum adjustment wheels with clearly identified tuning settings from 1 (soft) to 10 (hard) -Color-coding: red for rebound force, blue for compression force -Manually adjustable without additional tools -Each definite click of the wheel confirms the simple and quick damping force adjustment -Wheel camber is adjustable by aluminum support bearing -Weight advantage by eliminating the need for an external oil reservoir -BILSTEIN-monotube technology developed through years of motorsport involvement -Spring plates and lock nuts made from special aluminium alloy -Quality built racing springs -Roadworthy: TÜV certificate according to Section 19 of the German Road Traffic -Licensing Regulations (StVZO) -Extremely easy to install and simple to use -Can be retrofitted for racing in cooperation with •BILSTEIN-Motorsport on request -Surface coating using Triple-C-Technology® for long-lasting corrosion resistance Brochure (Clubsport): -100 Damping variations that can be experienced and manually selected with tangible differences -Adjustment knobs with clearly visable and distinct scaling, from 1 (soft) to 10 (firm) -Clear click resolution and color coding -Simple setup changes are possible while installed without the need for additional tools -Includes uniball camber plates and shock mounts -Weight and installation space advantages thanks to integrated reservoir -Quality racing springs made from highly durable material -All Spring plates and lock nuts are made from special aluminum alloy -Aluminum uniball camber plates and shock mounts

  • Twintube Strut Assembly
  • Sport Suspension without Electronic Suspension

  • Prop 65 (Y/N) Y
  • Prop 65 Y/N Y
  • Segment Spare Parts
  • PartType Shocks / Struts
  • Prop65 Y
  • Strut Mount(s) Included No
  • Active or Passive Suspension Passive
  • Adjustable Ride Height No
  • Includes Bump Stop No
  • Adjustable Compression No
  • Coil Spring Insulator(s) Included No
  • Strut Mount Insulator(s) Included No
  • Coil Spring Included No
  • FAB High power reserves for maximum safety
  • FAB Restores original driving comfort, handling and safety
  • FAB High OE quality
  • Title Bilstein Shock Absorbers
  • Position Front Left
  • Position Front Left
  • Finish Black Paint
  • Mounting Hardware Included No
  • Series B4 OE Replacement
  • Upper Mount Type Stem
  • California Proposition 65 WARNING: Cancer & Reproductive Harm - www.P65Warnings.ca.gov
  • Grade Type Premium
  • Boot Included No
  • Spring Seat Included Yes - Fixed
  • Internal Design Twintube
  • Lower Mount Type Base Cup
  • Extended Length (IN) 20.14
  • Collapsed Length (IN) 13.80
  • Collapsed Length (MM) 350.5
  • Extended Length (MM) 511.5
×
