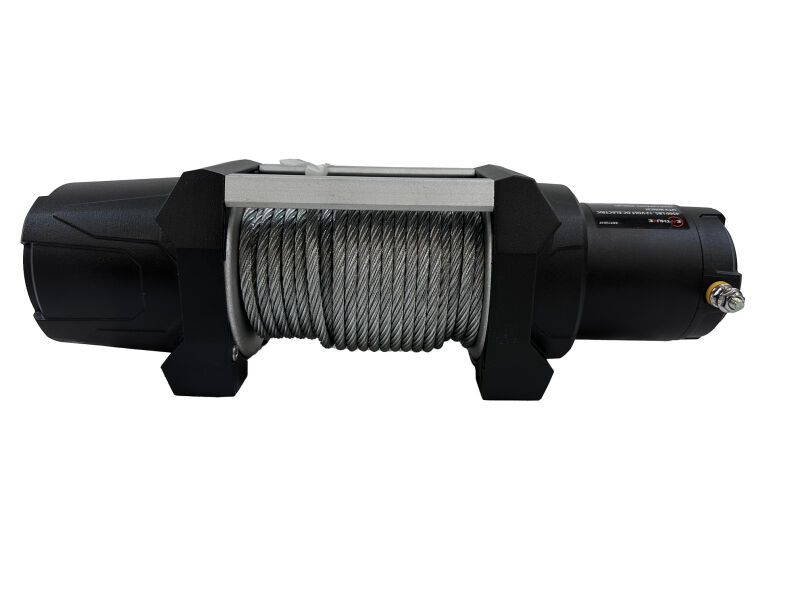

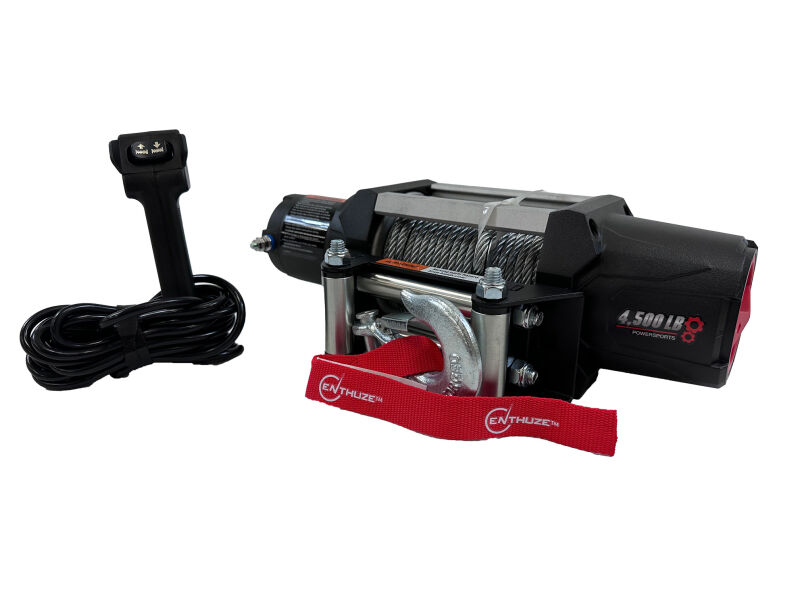

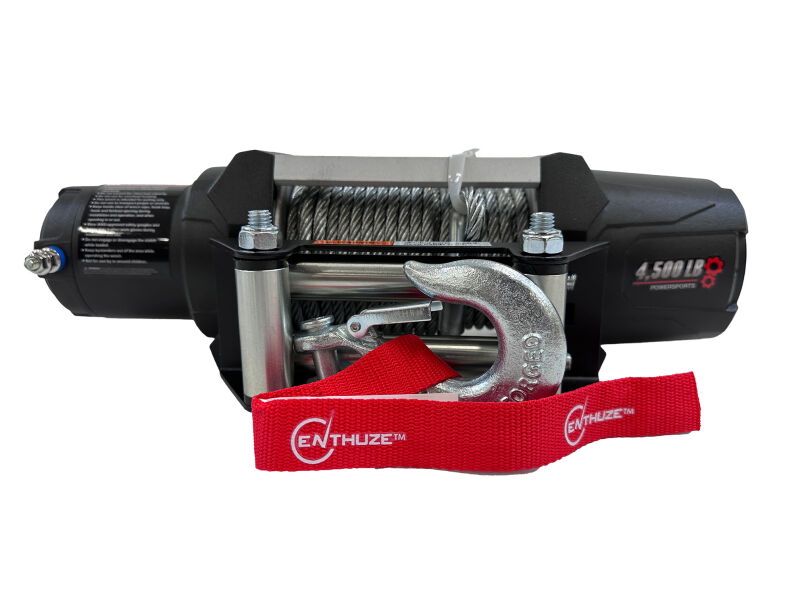

Enthuze 4500lb ATV/UTV Winch, Steel Rope Winch Enthuze #ACTENT7201P
The Enthuze 4,500lb 12V DC Electric ATV/UTV Winch features a 1.4 HP permanent magnet motor that stays cooler during long pulls. The three-stage planetary gear system provides fast line speed. The automatic load-holding brake ensures maximum safety. The free spooling provides a fast line-out, while the 12’ ergonomic handheld remote control allows for safe operation at a distance. The winch contains a 4-way roller fairlead and an aircraft-grade wire rope.
For heavy duty Winching needs, Warn Winch is a champion workhorse. Big torque, power and quick no load retrieval speed is what Warn delivers
- 1.4 HP permanent magnet motor
- Three-stage planetary gear system provides fast line speed
- Automatic load-holding brake keeps drum cool
- 2" drum for superior cable-surface contact
- Equipped with premium stainless-steel hardware
- IP68 waterproof design keeps elements out
- Includes wired remote control
- Rated Single Line Pull: 4500Ib (2041kg)
- Application: ATV / UTV
- Motor: 12V DC 1.4 HP Permanent Magnet
- Power in & Power Out: Yes
- Duty Cycle Rating: 5% (45 seconds at Max Rated Load
- 14 minutes, 15 seconds rest)
- Wired Remote Controller: Wired, 12ft (3.7m) long
- Gear Train: 3-Stage Planetary
- Gear Ratio: 201:1
- Free Spool: Cam Activated
- Brake: Auto. Load Holding Mechanical
- Drum (Dia. X L): 2" X 5" (50mmx127mm)
- Hook: 5/16" Clevis, with Spring-Loaded Safety Latch
- Fairlead: 4-Way Roller
- Rope Size/Type: 0.236" x 50’ (6.0mm x 15.2m), : 7X19W Galvanized Steel, : Aircraft-Grade Wire Rope
- Battery: 12V DC Minimum 20 Ah
- Battery Cables: 8 Gauge, 7.7' (2.35m) Long
- Mounting Pattern: 3’’x 6.6’’ (76mmx167mm)
- Mounting Hardware: Adaptor Plate: 4xM8x25mm
- : Fairlead: 2x M8x25mm
- : Relay：2x M5x20 mm
- Sound Rating: 80db
- Overall Dimensions (L X D X H): 15 "X4.7"X4.6"(380mmx120mmx118mm)
- Weight: 27.1 Ib. (14.2kg)
- IP Rating: IP 68 - Winch and Controls
- To prevent serious injury, read and understand the owner's manual before operating
- Do not exceed the rated load capacity
- This winch is intended for pulling only
- Do not use to transport people or animals
- Keep hands clear of winch rope, hook loop, hook and fairlead opening during installation and operation, and when spooling in our out.
- Wear ANSI-approved safety goggles and heavy-duty leather work gloves during installation and use
- Do not engage or disengage the clutch while loaded
- Keep bystanders out of the area while operating the winch
- Not for use by or around children
- PROP 65 WARNING CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
